World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.
LANTIME-M300 - NTP Server is available in stock which ships the same day.
LANTIME-M300 - NTP Server comes in UNUSED as well as REBUILT condition.
To avail our best deals for LANTIME-M300 - NTP Server, contact us and we will get back to you within 24 hours.
Part No.: LANTIME-M300
Manufacturer: Meinberg
Country of Manufacture: United States of America (USA)
Operating Temperature: 0 - 50�C
Dimensions: 443 x 288 x 45mm
Display: LC-display, 2 x 40 characters, with backlight
Telnet: Telnet (RFC 854-RFC 861)
HTTP: HTTP/HTTPS (RC 2616)
PRP: IEC 62439-3
Time Protocol: RFC 868
Daytime Protocol: RFC 867
Product Type: NTP Server in 1U Case for Server Rackmount
Availability: In Stock
Series: Mark VI

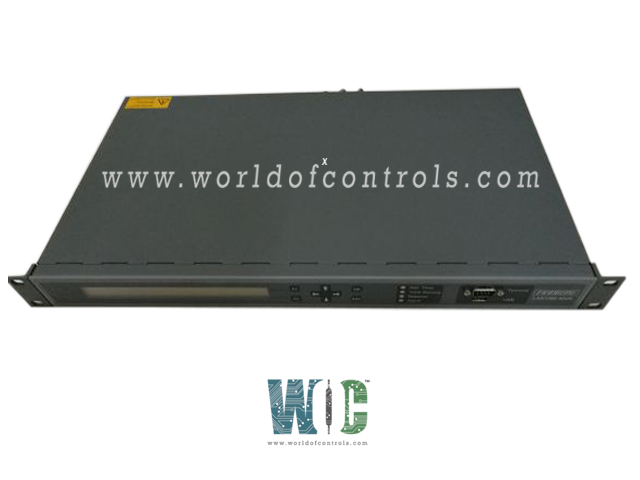

LANTIME-M300 is an NTP Server in 1U Case for Server Rackmount developed by Meinberg. It is�designed to provide accurate and reliable time synchronization for networks of any size. Housed in a compact 1U server rackmount case, the M300 is engineered for high-performance time synchronization in data centers, enterprise networks, and industrial applications. By supporting both NTP and SNTP protocols, can synchronize a wide range of systems, from servers and network devices to embedded systems.
One of the standout features of the LANTIME is its modular system architecture. This flexibility allows users to configure the server according to their specific needs. It can be equipped with up to six Ethernet ports, with options for fiber optic ports and Gigabit Ethernet interfaces. This ensures seamless integration into various network environments, supporting both small and large-scale deployments.
It can be easily configured through its web-based interface, which provides a user-friendly, intuitive way to manage the server's settings and monitor its status. The interface is accessible from any standard web browser, simplifying the configuration process for users. Additionally, the server supports Telnet and SSH access, offering advanced users the option to use a menu-driven setup utility via the shell prompt for further customization and control.
It supports a wide range of network protocols, making it highly versatile for integration into diverse network infrastructures. It supports IPv4, IPv6, NTP, SNTP, and several other protocols, including DAYTIME, DHCP, HTTP, HTTPS, and SNMP. This extensive protocol compatibility ensures that the M300 can seamlessly connect with various network devices, making it an ideal choice for organizations with complex or evolving network requirements.
It is equipped with an alert notification system to notify users of any status changes or potential issues. Notifications can be sent via Email, WinMail, SNMP, or to an external display. This feature ensures proactive monitoring and quick response to any issues, reducing the risk of downtime and ensuring continuous operation in critical environments.
For organizations using SNMP-based network management systems, it offers full support for SNMP v1, v2, and v3. The server includes its own SNMP daemon for both status monitoring and configuration management. It also supports SNMP Trap messages, enabling administrators to receive immediate alerts about system events, ensuring better control and management of network time synchronization.
The USB port provides an easy way to update the firmware, lock access to the front panel menu, and back up or restore configurations. This simplifies system management and provides an extra layer of security, ensuring that the server�s settings can be quickly recovered in case of failure or hardware replacement.
It can be connected to a Meinberg GPS Antenna/Converter Unit for high-accuracy time synchronization using GPS signals. The system supports up to 300 meters of coaxial cable, providing flexibility in antenna placement, especially in large or complex installations. This feature is particularly valuable for environments where the highest level of precision is required.
In addition to standard NTP synchronization, it offers several output options to cater to specialized time synchronization needs. These options include an IRIG Time Code for military or industrial use, a frequency synthesizer for generating precise frequencies, and programmable pulse outputs for event-based triggers. These customizable outputs make the M300 a versatile time server that can be tailored to specific industry requirements.
Equipped with two standard RJ-45 Ethernet interfaces (10/100 MBit) for basic networking. However, it can be expanded with additional Ethernet ports, allowing for up to six independent interfaces. This scalability ensures that the M300 can grow with the needs of the organization, providing a reliable and robust time synchronization solution for large-scale networks.
The WOC team is always available to help you with your�industrial control system requirements. For more information, please contact WOC.
What is LANTIME-M300?
It is an NTP Server in 1U Case for Server Rackmount developed by Meinberg.
How does the component synchronize time?
It uses external or built-in Meinberg reference clocks (Stratum 1 mode) or connects to up to 7 NTP servers (Stratum 2 mode). It can receive time signals from a GPS antenna or other time sources to provide accurate synchronization across your network.
Can the server be configured remotely?
Yes, it offers a web-based interface for easy configuration and status monitoring. Additionally, it supports Telnet and SSH access for advanced users who prefer a menu-driven setup via the command line.
What network protocols does the component support?
It supports a wide range of protocols including IPv4, IPv6, NTP, SNTP, DAYTIME, DHCP, HTTP, HTTPS, FTP, SFTP, SSH, SCP, SYSLOG, SNMP, TIME, and TELNET. This ensures seamless integration into various network environments.
How many Ethernet ports does the LANTIME have?
Two standard RJ-45 Ethernet ports (10/100 MBit). It is also expandable to up to six independent Ethernet ports (including fiber optic and Gigabit Ethernet options), depending on your networking needs.
