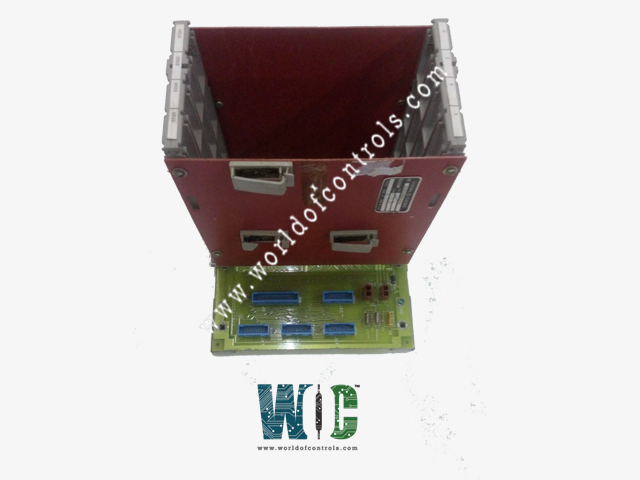

DS3820RDMA1A1A - Relay Driver Module is available in stock which ships the same day.
DS3820RDMA1A1A - Relay Driver Module comes in UNUSED as well as REBUILT condition.
To avail our best deals for DS3820RDMA1A1A - Relay Driver Module, contact us and we will get back to you within 24 hours.
SPECIFICATIONS:
Part Number: DS3820RDMA1A1A
Manufacturer: General Electric
Series: Mark IV
Product Type: Relay Driver Module
Number of channels: 12
Input Pulse Rate: 10 Hz to 25 kHz
Input Voltage Range: 24 V dc
Operating temperature: -40 to +70°C
Size: 8.25 cm high x 4.18 cm
Repair: 3-7 Day
Availability: In Stock
Weight: 2 lbs
Country of Origin: United States
FUNCTIONAL DESCRIPTION:
DS3820RDMA1A1A is a Relay Driver Module manufactured and designed by General Electric as part of the Mark IV Series used in GE Speedtronic Control Systems. A relay driver module plays a crucial role in managing the activation and deactivation of relays, which, in turn, control various components and functions within the turbine system. Gas turbine control systems are complex setups that require precise and reliable control over different processes to ensure safe and efficient operation.
FEATURES:
Control Signal Interface: Gas turbine control systems often involve microcontrollers or programmable logic controllers (PLCs) that generate low-power control signals. A relay driver module interfaces with these signals, ensuring compatibility between the low-voltage control signals and the high-power requirements of the relays.
Relay Activation: The relay driver module amplifies the control signals to provide the necessary power to activate the relays. These relays, in turn, control various components of the gas turbine, such as fuel valves, ignition systems, cooling systems, and other critical functions.
Electrical Isolation: Given the sensitive nature of control systems and the potential for electrical noise and disturbances, relay driver modules often incorporate electrical isolation. This isolation helps protect the control circuitry from voltage spikes and other undesirable effects on the load side.
Safety and Redundancy: Gas turbine control systems place a high emphasis on safety and reliability. Relay driver modules may include features such as redundant circuits or built-in diagnostics to enhance the reliability of the control system. Redundancy ensures that the system can continue to operate even if one component fails.
Status Indication: Many relay driver modules designed for industrial applications, including gas turbine control systems, include status indicators. These indicators, often in the form of LEDs, provide visual feedback on the status of the relays, making it easier for operators to monitor the system and troubleshoot any issues.
Protection Mechanisms: Gas turbine environments can be challenging, with factors like temperature variations and electrical disturbances. Relay driver modules may include protective features such as diodes to suppress voltage spikes and protect the electronics from damage.
Integration: Relay driver modules are designed to be seamlessly integrated into the overall control system. They may have standardized communication interfaces and mounting options to facilitate easy installation and maintenance.
WOC has the largest stock of GE Speedtronic Control System Replacement Parts. We can also repair your faulty boards. WORLD OF CONTROLS can also supply unused and rebuilt backed-up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.
What is a relay driver module?
A relay driver module is an electronic device designed to control the operation of relays. It acts as an interface between low-power control signals, typically from microcontrollers or PLCs, and the high-power requirements of relays used to control various devices in a system.
Why is a relay driver module needed?
Relays often require more power to operate than microcontrollers or low-power circuits can provide. A relay driver module amplifies and adapts the control signals, making it possible to control high-power devices without directly connecting them to the sensitive control circuitry.
What types of relays are compatible with relay driver modules?
Relay driver modules are versatile and can be used with various types of relays, including electromagnetic relays, solid state relays, and others, depending on the specific requirements of the application.
