World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS3800HSAA1T1M - DOM-PLUS SERVO AMP is available in stock which ships the same day.

DS3800HSAA1T1M - DOM-PLUS SERVO AMP comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS3800HSAA1T1M - DOM-PLUS SERVO AMP, contact us and we will get back to you within 24 hours.


Part Number: DS3800HSAA1T1M
Manufacturer: General Electric
Series: Mark IV
Function: Gate Driver

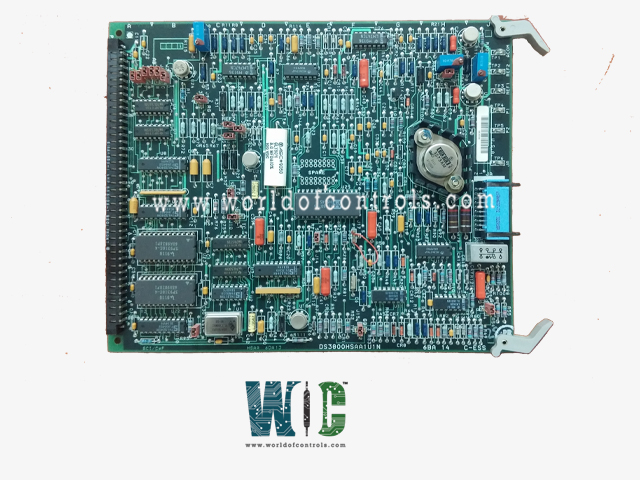

GE Speedtronic Mark IV DS3800HSAA1T1M is a gate driver on the gas turbine control. On one end, the GE Dom Plus Servo Amp Board DS3800HSAA1T1M has a modular connector, and on the other, retention levers. A heat sink is installed on the board. The analog/digital converter is a board-mounted component. 1 34-pin connector and 1 socket for electronically erasable programmable read-only memory (EEPROM) modules are also included on the GE Dom Plus Servo Amp Board DS3800HSAA1T1M. Three trimmer resistors are also included on the board.

  • Multiple capacitors are populated on the GE Dom Plus Servo Amp Board DS3800HSAA1T1M. During typical drive operations, the capacitors store current. Control signals are sent to the board, which trigger the capacitors to release the current.
  • The cycle then repeats itself, with the capacitors storing current. This occurs without user intervention and poses no risk to the operator or anyone in the near vicinity. If the board is replaced, the current stored in the capacitors must be taken into account.
  • The drive must be turned off before the damaged board can be removed. To check for the presence of power in the drive, the technician must utilize a full-featured testing gear. The capacitors, on the other hand, may hold current after all ac and dc current has been gone.
  • The technician could be shocked or burned by the high-voltage electricity. To remove the high-voltage from the capacitors, one way is possible. Wait 30 seconds after turning off the drive for the power to dissipate from the capacitors before contacting the board.
  • WOC has the largest stock of Speedtronic Mark IV control spares and we can repair your faulty DS3800HSAA1T1M with a warranty period.

WORLD OF CONTROLS can also supply UNUSED and REBUILT DS3800HSAA1T1M cards backed up with a warranty. Contact us, Our team of experts are available round the clock to support your Mark IV DS3800HSAA1T1M needs.




What is the purpose of a servo drive?

The servo drive operates the servomotor in response to commands from a PLC or other controller, and provides feedback via signals from an encoder or other component. A torque-increasing power transfer device that reduces motor speed.

What is the difference between servo motor and servo drive?

Servo drivers regulate motion by precisely calculating the path that must be followed and providing command signals to the motor. Servo drives can control velocity, position, and torque, which is the most important parameter.

What is the Phone Number for WOC?

Please contact World of Controls FZE for sales at +1 609 385 1231

Does the DS3800HSAA1T1M have a Warranty?

WOC can also supply UNUSED and REBUILT Mark IV DS3800HSAA1T1M backed up with a warranty of 24 months.

How long does it take for a WOC DS3800HSAA1T1M to Ship?

WOC maintains a large inventory and can fulfill many orders the same day. Please contact us for additional information.
