World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

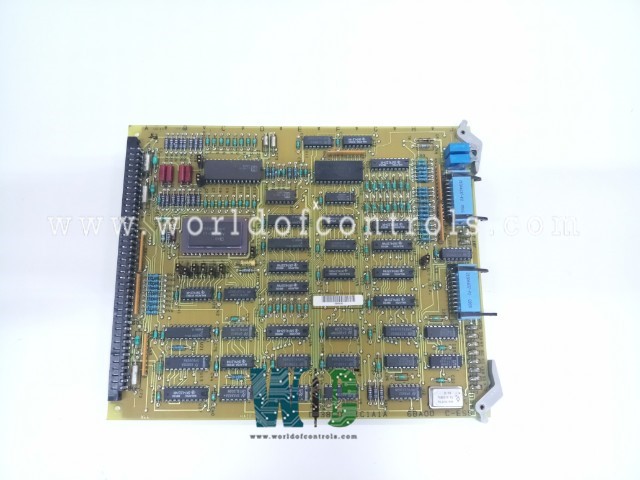

DS3800HAIC1D1C - HART Analog Input Converter Board is available in stock which ships the same day.
DS3800HAIC1D1C - HART Analog Input Converter Board comes in UNUSED as well as REBUILT condition.
To avail our best deals for DS3800HAIC1D1C - HART Analog Input Converter Board, contact us and we will get back to you within 24 hours.
SPECIFICATIONS:
Part Number: DS3800HAIC1D1C
Manufacturer: General Electric
Series: Mark IV
Product Type: HART Analog Input Converter Board
Number of channels: 12
Input Voltage Range: 24 V dc
Operating temperature: -40 to +70°C
Size: 8.25 cm high x 4.18 cm
Repair: 3-7 Day
Availability: In Stock
Weight: 2 lbs
Country of Origin: United States
FUNCTIONAL DESCRIPTION:
DS3800HAIC1D1C is a HART Analog Input Converter Board manufactured and designed by General Electric as part of the Mark IV Series used in GE Speedtronic Control Systems. HART is a communication protocol widely used in industrial automation to communicate with smart field devices like sensors and actuators. An Analog Input Converter Board in the context of HART would typically convert analog signals from sensors (such as temperature, pressure, or flow) into digital signals compatible with the HART protocol. This allows for remote monitoring and control of these field devices.
FEATURES:
Analog Input Channels: The board will have multiple channels for receiving analog signals from field devices. These channels are designed to accommodate signals such as voltage or current corresponding to physical parameters like temperature, pressure, or flow.
HART Communication Protocol: The board is equipped with HART communication capabilities, allowing it to communicate digitally with HART-enabled field devices. This protocol enables bidirectional communication, allowing for not only data reading but also device configuration and control.
Signal Conditioning: Analog signals from sensors may need conditioning to ensure accuracy and reliability. Signal conditioning circuits on the board help in filtering, amplifying, or otherwise adjusting the input signals.
Isolation: Industrial environments can be harsh, and electrical noise can affect signal quality. Isolation features on the board help protect sensitive electronics from such interference and ensure reliable performance.
WOC has the largest stock of GE Speedtronic Control System Replacement Parts. We can also repair your faulty boards. WORLD OF CONTROLS can also supply unused and rebuilt backed-up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.
What is a HART Analog Input Converter Board used for?
A HART Analog Input Converter Board is used in industrial automation to convert analog signals from sensors (such as temperature, pressure, or flow) into digital signals compatible with the HART communication protocol. This enables remote monitoring and control of field devices.
How does HART communication work with the Analog Input Converter Board?
HART communication involves superimposing digital information on top of the analog signal. The Analog Input Converter Board communicates with HART-enabled field devices, allowing for bidirectional communication, configuration, and data retrieval.
Does WOC Provide a Warranty Certificate For their Products?
WOC provides warranty certificates depending on the Parts.
