DS3800DMPK1E1D - GENERAL REGULATOR BOARD

DS3800DMPK1E1D - GENERAL REGULATOR BOARD DS3800DMPK1E1D - GENERAL REGULATOR BOARD

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS3800DMPK1E1D - GENERAL REGULATOR BOARD is available in stock which ships the same day.

DS3800DMPK1E1D - GENERAL REGULATOR BOARD comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS3800DMPK1E1D - GENERAL REGULATOR BOARD, contact us and we will get back to you within 24 hours.

SPECIFICATIONS

Part No.: DS3800DMPK1E1D
Manufacturer: General Electric
Product Type: General Regulator Board
Series: Mark IV

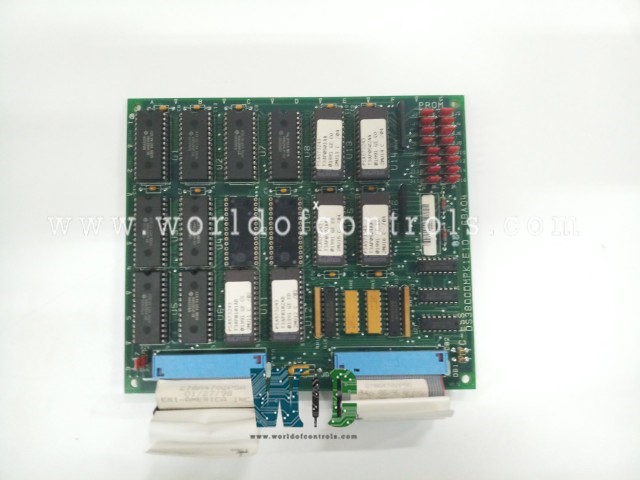

The DS3800DMPK1E1D is a General Regulator board under mark IV series. There are 14 EPROM modules on the board. There are also 17 jumpers, two 34-pin ribbon cables, and two one-pin connections on the board. The DS3800DMPK1E1D replacement does not have EPROM modules inserted in the module sockets. The connectors are built into the board, and the modules can be fitted and withdrawn as needed.

  • Slide a flat-blade screwdriver between the module and the socket on either end of the module to remove it. To remove the module from the socket, gently rock the blade. Then repeat the process on the opposite end of the module. Place the module in a static-protective bag right away.
  • Static can readily corrupt the data on the module, and the bag prevents static from entering the module. On the replacement board, find the same socket and align it with the socket.
  • Gently press it into the socket with your fingertips. If there is any gap between the socket and the module, inspect the connection. If necessary, press the socket to ensure a complete connection with the module.
    While installing the modules, place the replacement board on a flattened static-protective bag. You must also inspect the jumpers on the damaged board and take note of their positions.
  • Take note of whether the jumper covers pins 1 and 2 or 2 and 3. Find the same jumper on the replacement board and move it to the correct position.

World of Controls has the most comprehensive catalog of GE Speedtronic Mark IV control components. Our professionals are standing by to help you with your Mark IV needs. If you require any additional information, please contact WOC immediately.



Frequently Asked Questions



What is DS3800DMPK1E1D?
DS3800DMPK1E1D is a General Regulator board under mark IV series.

How to Obtain DS3800DMPK1E1D?
World of Controls provides DS3800DMPK1E1D as well as other turbine control products. Contact WOC.
