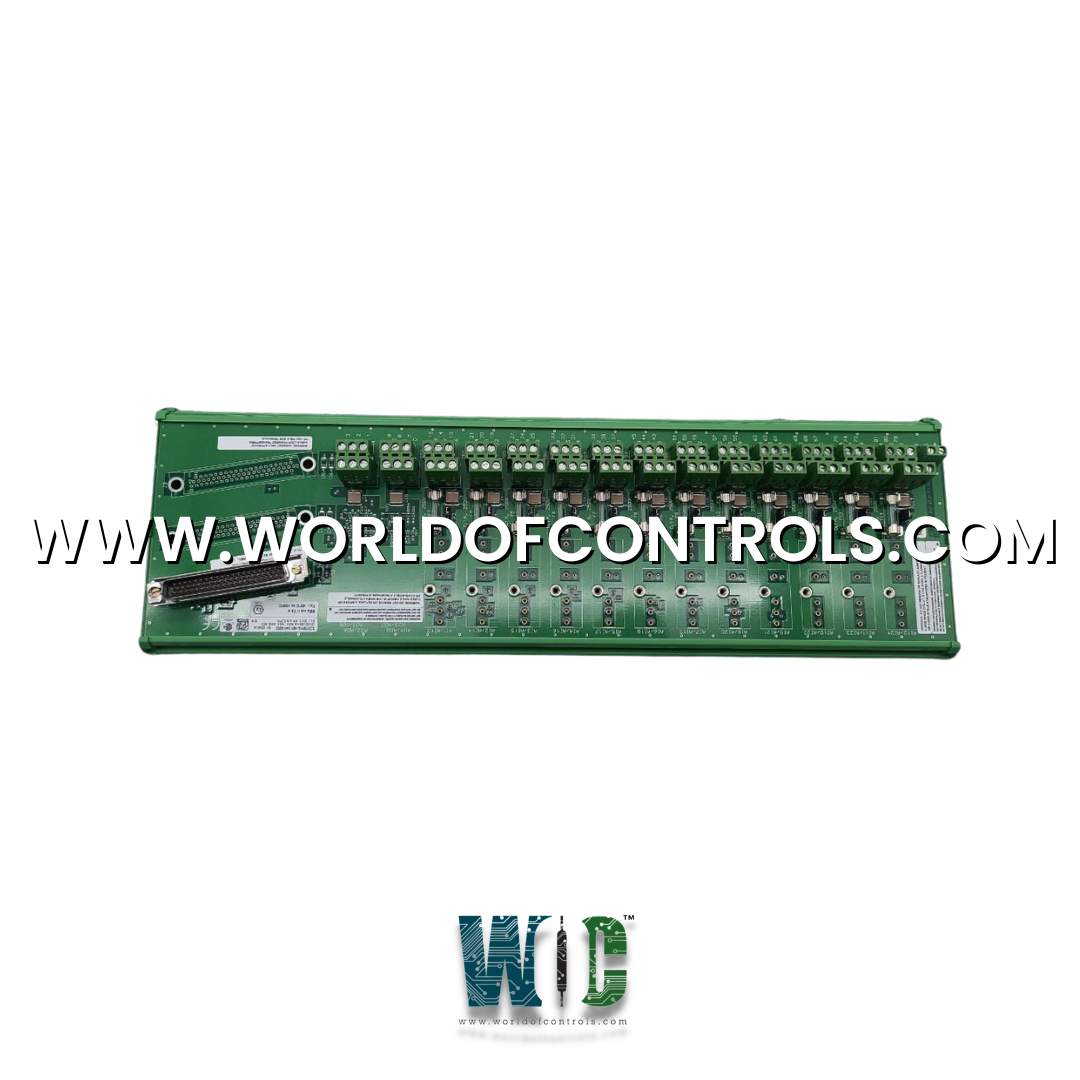

5441-695 - DataForth FTM Module

SPECIFICATIONS

Part Number: 5441-695
Manufacturer: Woodward
Product type: Field Terminal Module
Availability: In Stock
Country of Manufacture: United States (USA)

Functional Description

5441-695 is a DataForth FTM Module developed by Woodward. It serves as an interface between the field devices or sensors and the control system, allowing for efficient and reliable data exchange. It support different communication protocols and standards, enabling seamless integration with the overall control system.

Features

• The module has 24 channels of 0-5 Vdc input and 8 channels of 4-20 mA output. Two special Simplex Dataforth FTMs are connected through two high density analog/digital cables in place of the two standard 24/8 FTMs. Its purpose is to convert sensor input signals to a 0 to 5 V input that can be used with the 24/8 Analog module.
• Each channel can be configured independently using a plug-in standard isolated Dataforth SCM7B converter that has been modified to meet Woodward's bandwidth and input temperature range requirements. Each module can be plugged into any of the FTM's 12 channels. Each plug-in module converts the incoming signal to a voltage ranging from 1 to 4 volts. The FTM and its plug-in modules do not require calibration. The plug-in modules are powered directly through the cable connector, so no external power connections to the FTM are required.

Installation

• The modules are inserted into card guides in the control's chassis and connected to the motherboard. Two screws, one at the top and one at the bottom of the front panel, hold the modules in place.
• There are also two handles at the top and bottom of the module that, when toggled (pushed outward), move the modules out just far enough for the boards to disengage the motherboard connectors.
• Each Dataforth module is linked to two Simplex Dataforth FTMs via two high density analog/discrete cables. The FTM has access to all I/Os on the module.

World of Controls has the most comprehensive selection of GE and Woodward components. Our professionals are available to help you with your requirements at any time. If you require any additional information, please contact WOC immediately.

Frequently Asked Questions

What is 5441-695?
It is a Field Terminal Module developed by Woodward.

How many channels does the module have for input and output?
The module offers 24 channels of 0-5 Vdc input and 8 channels of 4-20 mA output. These channels provide the capability to handle a variety of input signals and control output signals within the control system.

Do the FTM and plug-in modules require calibration?
No, the FTM and its plug-in modules do not require calibration. They are designed to operate reliably without the need for additional calibration procedures.

How are the plug-in modules powered?
The plug-in modules are powered directly through the cable connector, eliminating the need for external power connections to the FTM. This simplifies the installation and operation process of the module.
