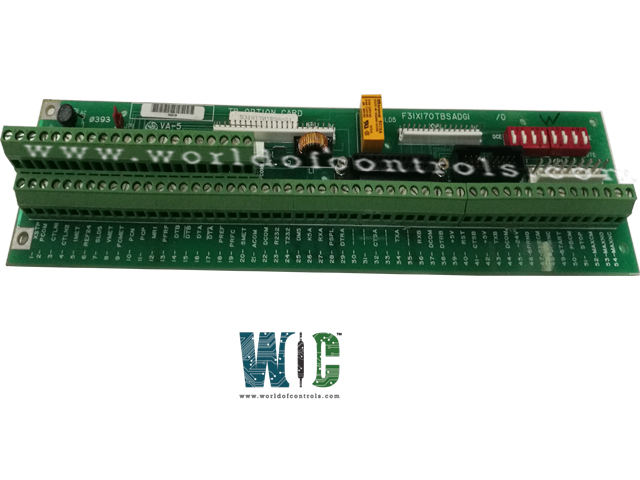

531X170TBSAGG1 - Serial Communication Termination Module

531X170TBSAGG1 - Serial Communication Termination Module 531X170TBSAGG1 - Serial Communication Termination Module

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

531X170TBSAGG1 - Serial Communication Termination Module is available in stock which ships the same day.

531X170TBSAGG1 - Serial Communication Termination Module comes in UNUSED as well as REBUILT condition.

To avail our best deals for 531X170TBSAGG1 - Serial Communication Termination Module, contact us and we will get back to you within 24 hours.


Part No: 531X170TBSAGG1
Manufacturer: General Electric
Product Type: Serial Communication Termination Module
Series: Mark V LM
Operating temperature: -30 to 65oC
Power Supply Voltage: 24 V dc
Board Size: 14.3 cm high x 23.1 cm
Weight: 0.45 kg
Availability: In Stock
Country of Origin: USA
Manual: GEH-6153


531X170TBSAGG1 is a Serial Communication Termination Module manufactured and designed by General Electric as part of the Mark V LM Series used in GE Speedtronic Control Systems. The TBSA terminal board is in location eight of . The pressure transducer signal wires from the externally-mounted XDSA board for DLE applications and the FMVED serial link wires are connected to this terminal board. The pressure transducer signals are connected to the TCSA board in . The FMVED signals are connected to the PCM daughterboard on the IO Engine in .


  • P3 - DLE serial pressure transducers are connected to the 12 V dc power that is received from the TCSA in R>. Additionally, this connection connects the transducer pressure signals back to the TCSA board in the "R" core.
  • P4 - Links to the FMVED motor controllers with 12 V dc power that is received from the TCSA in R>.
  • P5 - It provides a connection between P3 on the PCM daughterboard on the UCPB in R2> and channels 1 and 2 of the FMVED.
  • P6 - Connects P6 on the PCM daughterboard on the UCPB in R2> to channels 3 and 4 of the FMVED.


JP1 through JP16 - The transmit and receive communication circuits for the serial links of the FMVED motor controller are enabled by these hardware jumpers.

TB1: The Mark V LM controller receives incoming 115/230 V ac and 125 V dc power via the TB1 terminal board, which is situated in the PD core. For ac to dc conversion in the DACA module, ac power is linked to the TCPD board in the PD core through the JZ2 and JZ3 connectors (s). DC power is often supplied directly to TCPD through the TB1 terminal board from a 125 V dc uninterruptible power source (UPS/battery). The ignition is powered by the JZ5 connection. The same function is performed using the auxiliary ac signals using the JZ4 connector.

TB2: Excitation voltage for contact inputs (DTBA and DTBB terminal boards in the digital cores) can be either 125 V dc from the PD core or 24 V dc from the P core when using the TB2 terminal board. The selected contact input excitation option is put into practice at the manufacturing.

WOC has the largest stock of GE Speedtronic Control replacement spare parts. We can repair your faulty boards. WORLD OF CONTROLS can also supply unused and rebuilt backed-up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.


How to Check Price and Availability For 531X170TBSAGG1?

Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.

What Payment Options do You Accept?

Bank Transfer is the preferred payment method. For more payment options contact us.

How are boards packaged for shipment from WOC?

Parts are placed in antistatic packets and securely packed in ESD boxes cushioned with ESD Foam designed to safeguard electrical components.
