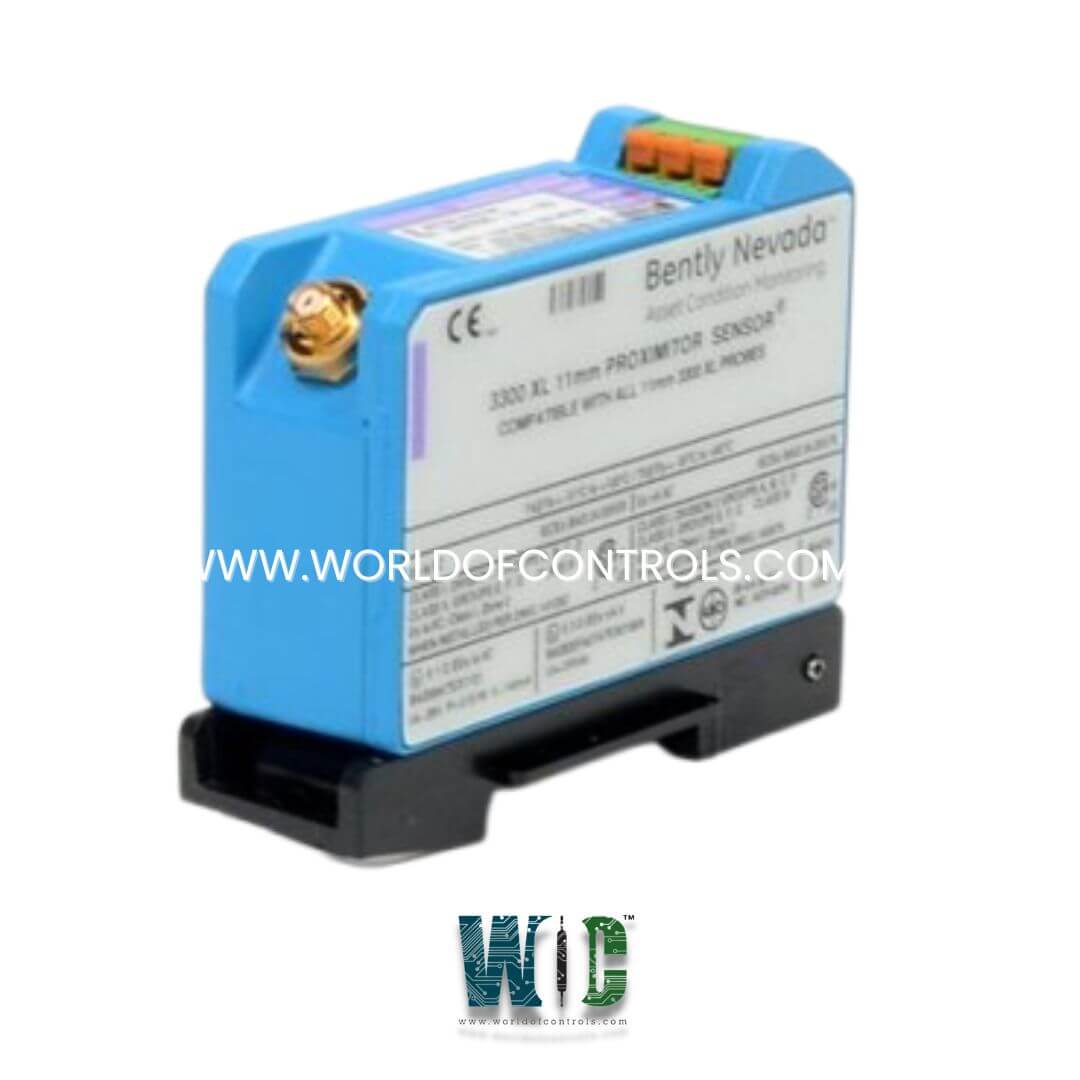

330780-91-01 - Proximitor Sensor

SPECIFICATIONS

Part Number: 330780-91-01
Manufacturer: Bently Nevada
Product Type: Proximitor Sensor
Operating Temperature: -52oC to +100oC
Storage Temperature: -52oC to +105oC
Country of Manufacture: USA (United States)

Functional Description

330780-91-01 is a Proximitor Sensor manufactured by Bently Nevada. It is a part of 3300 XL series. Builds upon the exceptional features of the 3300 XL 8 mm Proximitor Sensor, providing compatibility with larger 11 mm proximity probes. High-density installations and environments with significant RFI/EMI interference, ensuring compact and reliable transducer performance.

Features

• Total Length: 9.0 meters (29.5 feet), suitable for extended-distance setups.
• Mounting: Designed for DIN mount, offering flexibility for installation in various configurations.
• Input Compatibility: Accepts one non-contacting 3300 XL 11 mm Proximity Probe and an extension cable, enabling accurate proximity and vibration measurement.
• Power Requirements: Operates at -17.5 Vdc to -26 Vdc without barriers, consuming a maximum of 12 mA. Operates at -23 Vdc to -26 Vdc with barriers. Operation above -23.5 Vdc may reduce the linear range.
  Supply Sensitivity: Exhibits less than 2 mV change in output voltage per volt change in input voltage, ensuring stability under varying power conditions.
• RFI/EMI Protection: The advanced immunity ensures signal accuracy even in environments with high-frequency radio signals.
• Ease of Installation: With DIN mounting and SpringLoc terminals, the sensor reduces installation time and ensures long-term reliability.

Design Advantages

• Compact and Versatile: The thin profile allows installation in high-density DIN-rail setups and traditional panel mounts.
• Enhanced RFI/EMI Immunity: Provides robust protection against radio frequency interference (RFI) and electromagnetic interference (EMI). Achieves European CE mark compliance without requiring special mounting considerations.
• SpringLoc Terminal Strips: Eliminates the need for special tools during installation. Facilitates faster, more secure, and reliable field wiring connections.

Our team of experts is available round the clock to support your Bently Nevada needs. Our team at WOC is happy to assist you with any of your automation requirements. Please contact us by phone or email for pricing and availability on any parts and repairs.

FREQUENTLY ASKED QUESTIONS

What is 330780-91-01?
It is a 3300 XL Standard Proximitor Sensor manufactured by Bently Nevada.

What mounting options are available?
The Proximitor Sensor supports DIN mounting, which is ideal for high-density installations, as well as traditional panel mounting.

What input does it accept?
It accepts input from one 3300 XL 11 mm non-contacting proximity probe and an associated extension cable.

How does the Proximitor Sensor handle RFI/EMI interference?
The sensor features enhanced RFI/EMI immunity, making it resistant to high-frequency radio signals and electromagnetic interference. This ensures consistent performance in challenging environments and meets European CE standards without special mounting.
