DS3800NMEC1G1H - MOTOR FIELD CARD

SPECIFICATIONS

Part No.: DS3800NMEC1G1H
Manufacturer: General Electric
Product Type: Motor Field Card
Series: Mark IV

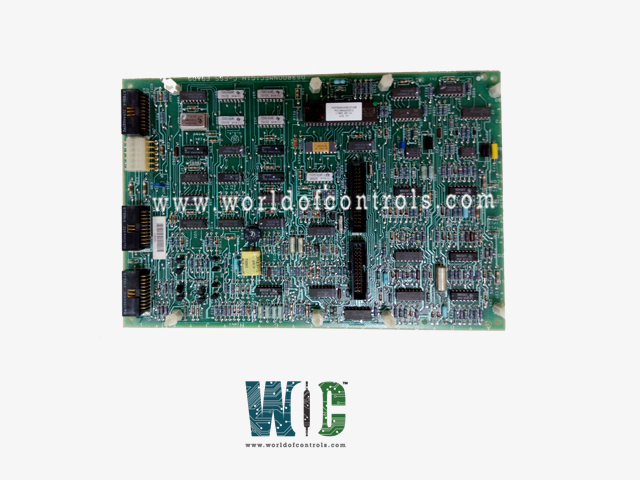

The DS3800NMEC1G1H is a motor exciter control board from General Electric's Speedtronic Mark IV range. The DS3800NMEC1G1H and other Speedtronic Mark IV circuit boards are used to regulate and operate gas and steam turbines. To create a controlled explosion, a turbine employs an internal combustion engine to mix fuel and air. This explosion releases a sequence of high-pressure gases, which force their way out, forcing the turbine to spin. The energy generated by the rotating turbine is then captured and put to use in a variety of ways.

• There are over a hundred resistors, diodes, and capacitors.
• It also has six connecting points for the electrical boards that surround it. There are ten half-circle black transistors on the board, as well as thirty-five integrated circuits that store all of the programming data.
• EEPROMs and EPROMs are two types of integrated circuits. The only difference is that EPROMs can be changed, whereas EEPROMs cannot.
• The board also has a variable resistor or potentiometer. The black knob with a white arrow in the center indicates the variable resistor. This knob allows changing the variable resistor in ten-degree increments from zero to one hundred.
• A crystal oscillator is included on the board to create a high and precise frequency.

World of Controls has the most comprehensive selection of GE Speedtronic Mark IV control components. At any time, our experts are accessible to help you with your Mark IV obligations. Please contact WOC as soon as possible if you require any extra information.



Frequently Asked Questions



What is DS3800NMEC1G1H?

The DS3800NMEC1G1H is a motor exciter control board from General Electric's Speedtronic Mark IV series.



Does the DS3800NMEC1G1H have a Warranty?

WOC can supply UNUSED and REBUILT DS3800NMEC1G1H backed up with a warranty.



How do I Contact World of Controls FZE?

Please contact World of Controls FZE for sales at +1 609 385 1231.
