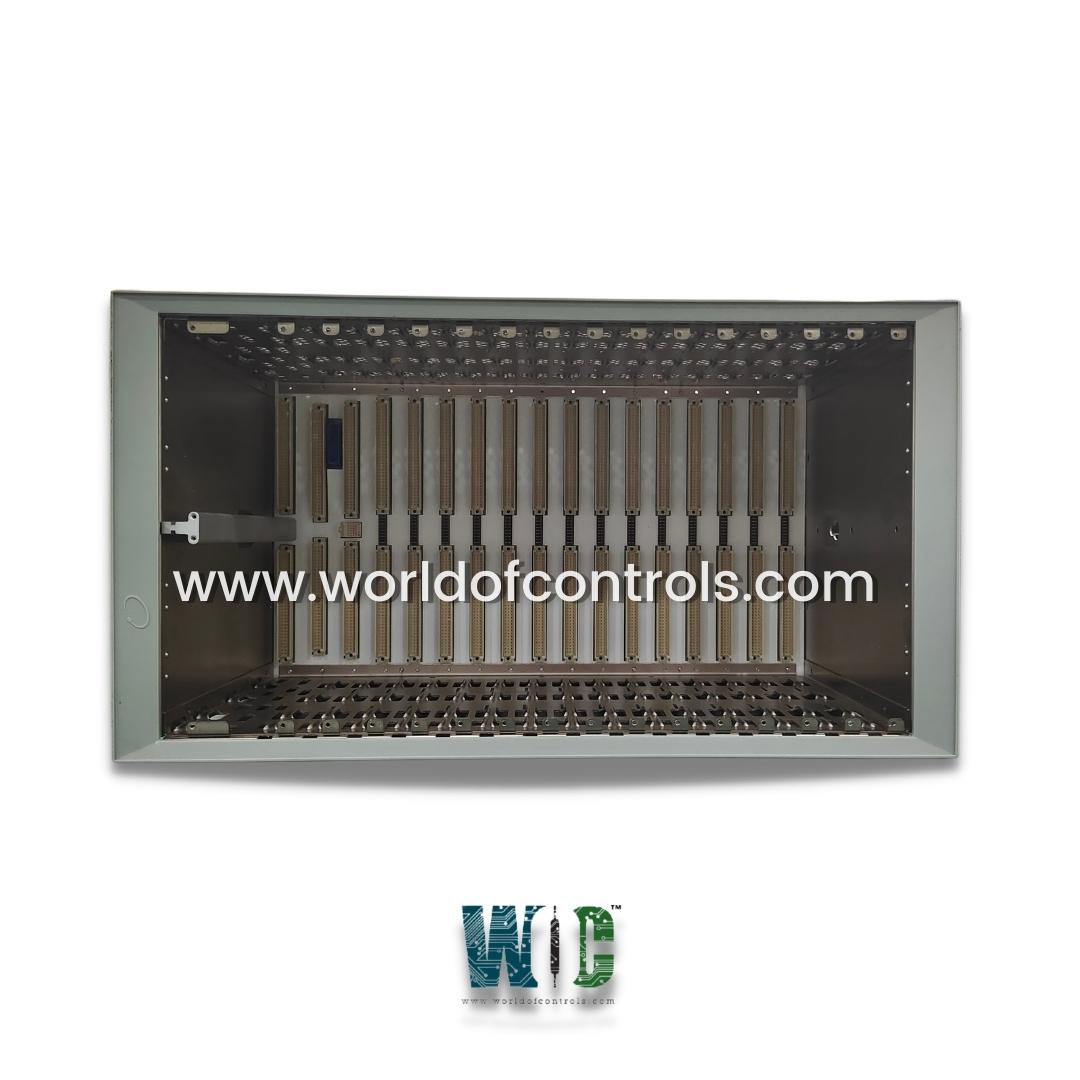

3500/05-01-02-00-00-00(RACK) - System Rack

SPECIFICATIONS

Part Number: 3500/05-01-02-00-00-00(RACK)
Manufacturer: Bently Nevada
Series: 3500/05
Availability: In Stock
Country of Origin: Unites States (USA)
Rack Size: 19-Inch (14 Module Slots)

3500/05-01-02-00-00-00 is a System Rack manufactured by Bently Nevada as a part of the 3500/05 series used in machinery condition monitoring systems. All 3500 monitor modules and rack power supply are housed in the Bently Nevada 3500/05 System Rack. It enables the 3500 modules to interact with one another, as well as the power supplies to distribute electricity to each module as needed.

3500/05-01-02-00-00-00 FEATURES

1. Stores all 3500 monitor modules as well as the rack power supplies.
2. Available in two sizes: full-size and mini-rack
3. Available in three different formats: Panel mounting, rack mounting, and bulkhead mounting are all options.
4. Rack Positions (7 or 14)

Rack Size

There are two sizes of 3500 Racks available:

1. Full-size Rack: 19-inch EIA rack with 14 module slots available
2. Mini-Rack: 12-inch rack with 7 module slots available

Panel Mount

• This rack style attaches to rectangular cut-outs in panels with clamps provided with the rack.
• From the back of the rack, you may access wiring connections and I/O modules.

Rack Mount

• The 3500 racks are mounted on 19-inch EIA rails in this rack type.
• From the back of the rack, you may access wiring connections and I/O modules.

Bulkhead Mount

• When access to the back of the rack is restricted, this rack type places the rack against a wall or panel. From the front of the rack, you may access wiring connections and I/O modules. This format does not support the 3500/05 Mini-Rack.
• The Rack Interface Module and Power Supplies must be installed in the far left rack position. Any combination of modules can be used in the remaining 14 rack locations (7 rack positions for the Mini-Rack).

WOC supports a large number of Bently Nevada parts. Please contact us if you require additional information or have a question.



FREQUENTLY ASKED QUESTIONS



What is Bently Nevada 3500/05-01-02-00-00-00?

Bently Nevada 3500/05-01-02-00-00-00 System Rack is part of the 3500/05 series and is used in machinery condition monitoring systems.

What is a Rack in Electronics?

A 19-inch rack is a standardized frame or enclosure that allows many electronic equipment modules to be mounted.
