MODHUB-16E - 16-Port Powered Card Cage (120 VAC)

MODHUB-16E - 16-Port Powered Card Cage (120 VAC) MODHUB-16E - 16-Port Powered Card Cage (120 VAC)

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

MODHUB-16E - 16-Port Powered Card Cage (120 VAC) is available in stock which ships the same day.

MODHUB-16E - 16-Port Powered Card Cage (120 VAC) comes in UNUSED as well as REBUILT condition.

To avail our best deals for MODHUB-16E - 16-Port Powered Card Cage (120 VAC), contact us and we will get back to you within 24 hours.


Model: MODHUB-16E
Manufacturer: General Electric
Product Type: Flexible ARCNET Active Hub
No of Ports: 16-Port Powered Card Cage
Series: MODHUB
Voltage: 120 VAC
Mounting Style: Rack Mount
Signaling: ARCNET
Availability: In Stock
Voltage: 100-230 VAC

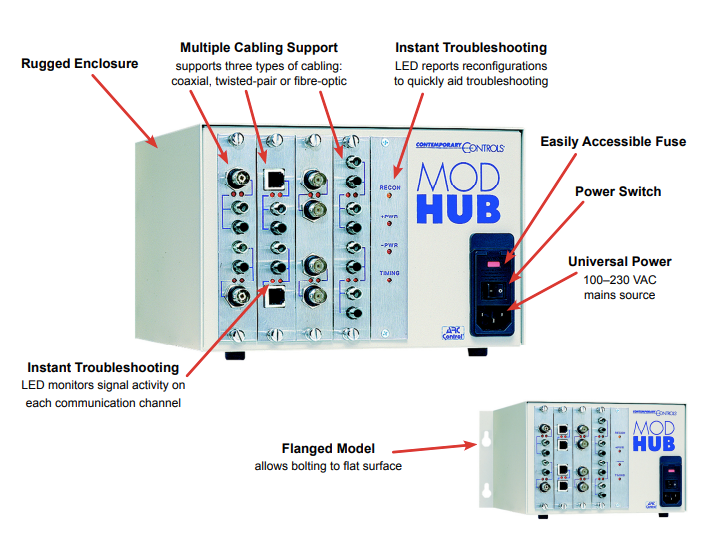

MODHUB-16E is a 16-Port Powered Card Cage (120 VAC) modular active hubs in the MOD HUB Series are adaptable enough to cable ARCNET networks in either a star or bus topology. By fastening the hub at one end of each bus segment, units can link bus topologies. These 4-slot hubs use low-power, low-heat CMOS components, high-efficiency LED lighting, a unique cooling mechanism built into the design, and network diagnostic capability using LED indications to guarantee worry-free operation. LEDs keep an eye on the power supply and hub timing. Network reconfigurations are signaled by an extra LED. To satisfy any requirements, several enclosure designs are available. Two 4-slot enclosures can be placed using the rack-mounting kit in a normal 19" (48.3 cm) rack, taking up just 7" (17.8 cm) of vertical rack space. The MODHUB-16E flanged unit additionally permits wall mounting.

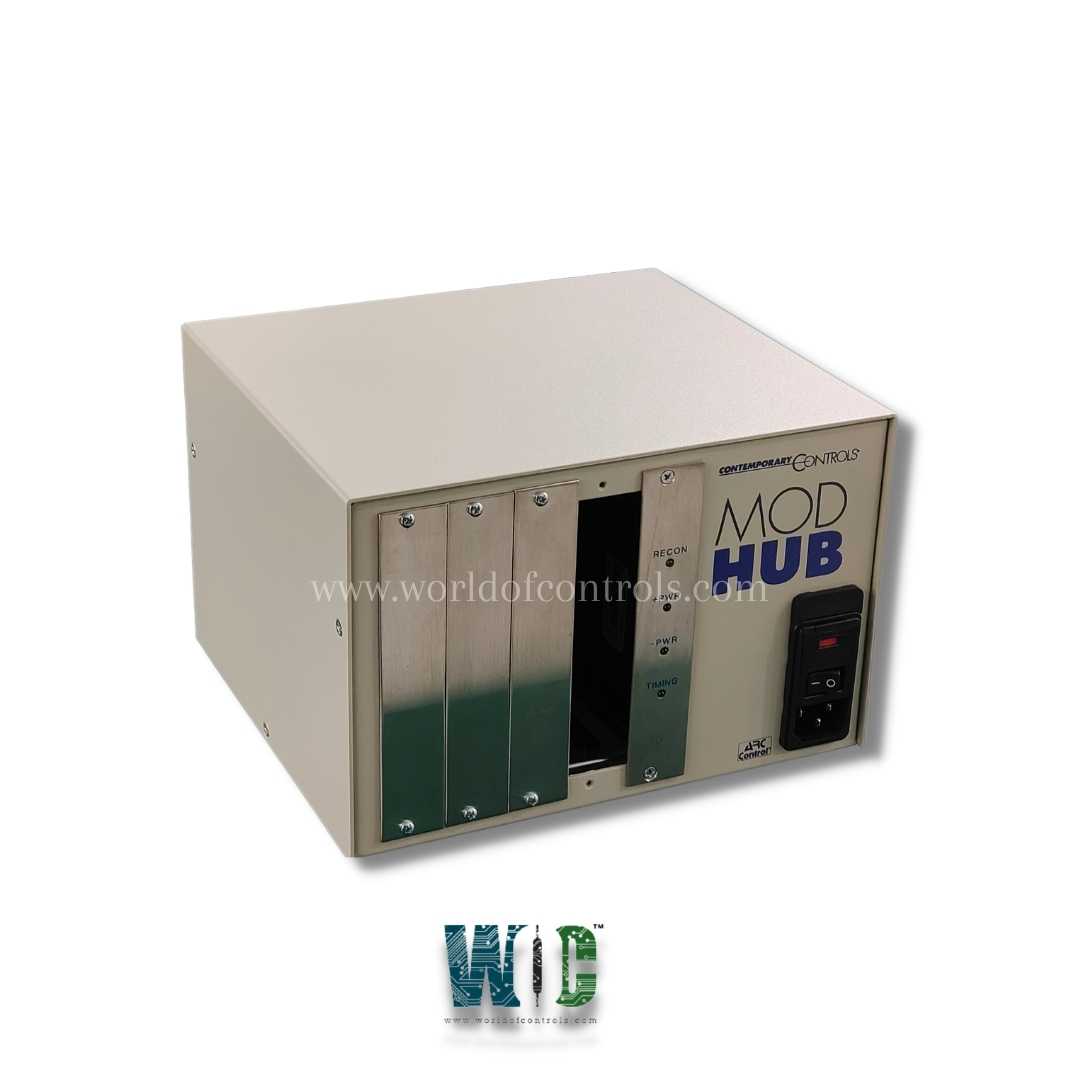

MODHUB 16E 16 Port Powered Card Cage

 The built-in flexibility has the advantage that you simply need to order the appropriate quantity and kind of connection for your application. There are several expansion modules in the EXP Series, each supporting two or four ports. Glass fiber optic cable, twisted-pair wire, and coaxial cable can all coexist in the same hub. In a single module, two combination expansion modules combine two distinct cable types. Ports can easily be added on-site with disposable EXP expansion modules.


1. Supportive of the baseband ARCNET network at 2.5 Mbps
2. Has four slots with room for up to 16 ports.
3. A 4-slot, one-size enclosure
4. Provides simple expansion with plug-in modules from the EXP Series
5. Combines glass fiber optic cable, twisted-pair cable, and coaxial cable in one hub.
6. LED indicator indicates network reconfiguration
7. Precision delay-line timing reduces hub jitter; 8. Rack-mounting accessories available
10. Digitally regulated hub unlatch delay 9. Watch-dog timer prevents hub lockout
11. A power source with multiple voltages
12. When running at 2.5 Mbps, is compatible with all current controls network interface modules (NIMs).

Our team of experts is available round the clock to support your needs. Our sales team at WOC is happy to assist you with any of your automation requirements. Please contact our staff by phone or email for pricing and availability on any parts and repairs.


What is ARCNET Active HUB?

When hubs are active, ARCNET networks become more resilient. They enhance the maximum distance that each cable segment may go up to 2000 feet 610 meters on coaxial segments.
