IS215UCCCH4A - VME Controller Board

IS215UCCCH4A - VME Controller Board IS215UCCCH4A - VME Controller Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

IS215UCCCH4A - VME Controller Board is available in stock which ships the same day.

IS215UCCCH4A - VME Controller Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for IS215UCCCH4A - VME Controller Board, contact us and we will get back to you within 24 hours.


Part Number: IS215UCCCH4A
Manufacturer: General Electric
Series: Mark VIe
Product Type: Controller Card
Microprocessor: Intel Pentium M Processor 1.6 GHz
Memory: 256 MB
Operating System: QNX Neutrino
Availability: In Stock
Country of Origin: USA
Manual: GEH-6721G

IS215UCCCH4A is a VME Controller Board manufactured by General Electric as a part of the Mark VIe Series used in gas turbine control systems. It is a module assembly that consists of the IS200 EPMC daughter board, IS215UCCC H4, 128 MB of flash memory, and 256 MB of DRAM. Occasionally referred to as 3U compact PCI. There are six ethernet-style ports on the faceplate. The intended function of each port is marked on the label. Additionally, the faceplate has a few LEDs. The controller detects certain system errors during startup, download, and normal operations. The diagnostics alarm can be displayed and reset from the ToolboxST application and is recorded in a historical manner on WorkstationST.

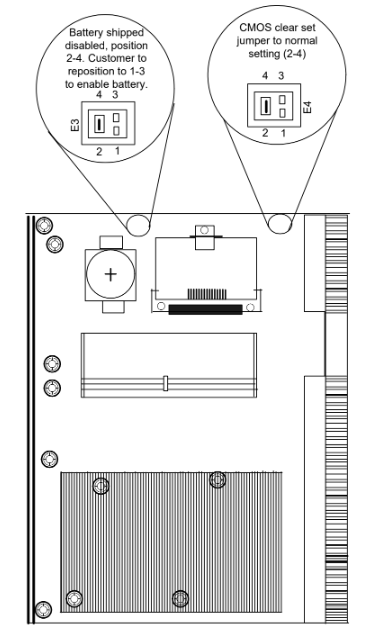

UCCC Jumper Location and Settings

Fig 2: UCCC Jumper Location and Settings

The Power Requirements for this board mention below

  • +5 V DC (+5%, -3%, 4.5A (typical) 6.75 max)
  • +3.3 V DC (+5%, -3%, 1.5A (typical) 2.0 max)
  • +12 V DC (+5%, -3%, 50mA max)

WOC has the largest stock of GE Speedtronic Mark VIe Replacement Parts. We can also repair your faulty boards. WORLD OF CONTROLS can also supply unused and rebuilt backed up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.


What is GE Mark VIe IS215UCCCH4A?

The IS215UCCCH4A is a VME controller developed under the Mark VIe system.

What is the function of interference suppressors on a VME controller?

These suppressors block the output of external electrical sources like radios, cell phones, and other similar devices.

What is a VME Connector?

Versa Module Eurocard bus is a computer bus standard used in embedded systems.
