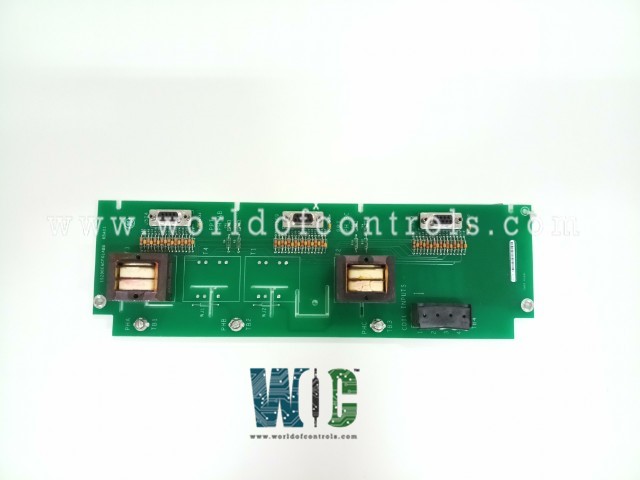

IS200EACFG1A - Exciter AC Feedback Board

IS200EACFG1A - Exciter AC Feedback Board IS200EACFG1A - Exciter AC Feedback Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

IS200EACFG1A - Exciter AC Feedback Board is available in stock which ships the same day.

IS200EACFG1A - Exciter AC Feedback Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for IS200EACFG1A - Exciter AC Feedback Board, contact us and we will get back to you within 24 hours.

SPECIFICATIONS

Part No.: IS200EACFG1A
Manufacturer: General Electric
Product Type: Exciter AC Feedback Board
Series: EX2100

IS200EACFG1A is an Exciter AC Feedback Board for the EX2100 excitation system. In the EX2100 Excitation Control, the Exciter Ac Feedback board (EACF) measures the exciter PPT AC supply voltage and current.

  • The terminal board comprises three-phase voltage measuring transformers as well as terminals for two Flux/Air core coils. The voltage and current circuits' outputs are fanned out to three DB9 connections for cabling to M1, M2, and C controllers. The connection connecting EACF to the EBKP backplane board might be as long as 90 meters.
  • The exciter auxiliary cabinet houses the EACF board. The board is available in three versions: EACFG1 for 480 Vrms inputs, EACFG2 for 1000 Vrms inputs, and EACFG3 for 1300 Vrms inputs.
  • For the flux/air core input signals, high-frequency noise reduction is provided near the signal entrance point. Where applicable, cable shield terminal screws connected to the chassis ground are situated within three inches of the input screws.

Exciter Voltage Measurement

  • The G1 model accepts a single three-phase input voltage in the nominal range of 480 Vrms + 20% at 50/60 Hz.
  • The G2 model accepts a single three-phase input voltage in the nominal range of 1000 Vrms + 20% at 50/60 Hz.
  • At 50/60 Hz, the G3 version allows a single three-phase input voltage in the nominal range up to 1300 Vrms + 20%. (1400 V for revision BAA and later).
    The secondary outputs of the potential transformers on both boards provide a nominal 1.6 Vrms.

Inputs for Air Core CT/Flux Coil

At 50/60 Hz, the air core current transformers give a nominal secondary output voltage of 0 to 0.8 Vrms.

Application Data

The three-phase voltage transformers are T1 through T4. Individual screw connectors TB1, TB2, and TB3 are for the voltage inputs. Terminal block TB4 is for wiring from the two Flux/Air core coils. The three 9-pin sub-D connectors, J504, J509, and J514 are for cables to the EBKP backplane for the EMIO boards.

IS200EACFG1A Replacement procedure

  1. Open the auxiliary cabinet door and check any electrical circuits for power before touching them.
  2. Disconnect all cables from the EACF board with care.
  3. Remove the three screws that secure the EACF board to the mounting and the board itself.
  4. Install the new board onto the standoffs with the three screws removed in step 3 in the same location as the old one.
  5. Reconnect all connections and wires to the board as labeled, and double-check that cables are positioned properly on both ends.
  6. Close the door to the auxiliary cabinet.

World of Controls is accessible to help you with your EX2100 requirements 24/7. If you want any additional information, please contact WOC.



Frequently Asked Questions



What is IS200EACFG1A?
IS200EACFG1A is an Exciter AC Feedback Board for the EX2100 excitation system.

What is the function of the component?
The Exciter Ac Feedback board (EACF) measures the exciter PPT AC supply voltage and current in the EX2100 Excitation Control.

How to Obtain IS200EACFG1A?
WOC provides IS200EACFG1A as well as other turbine control products. Contact World of Controls.
