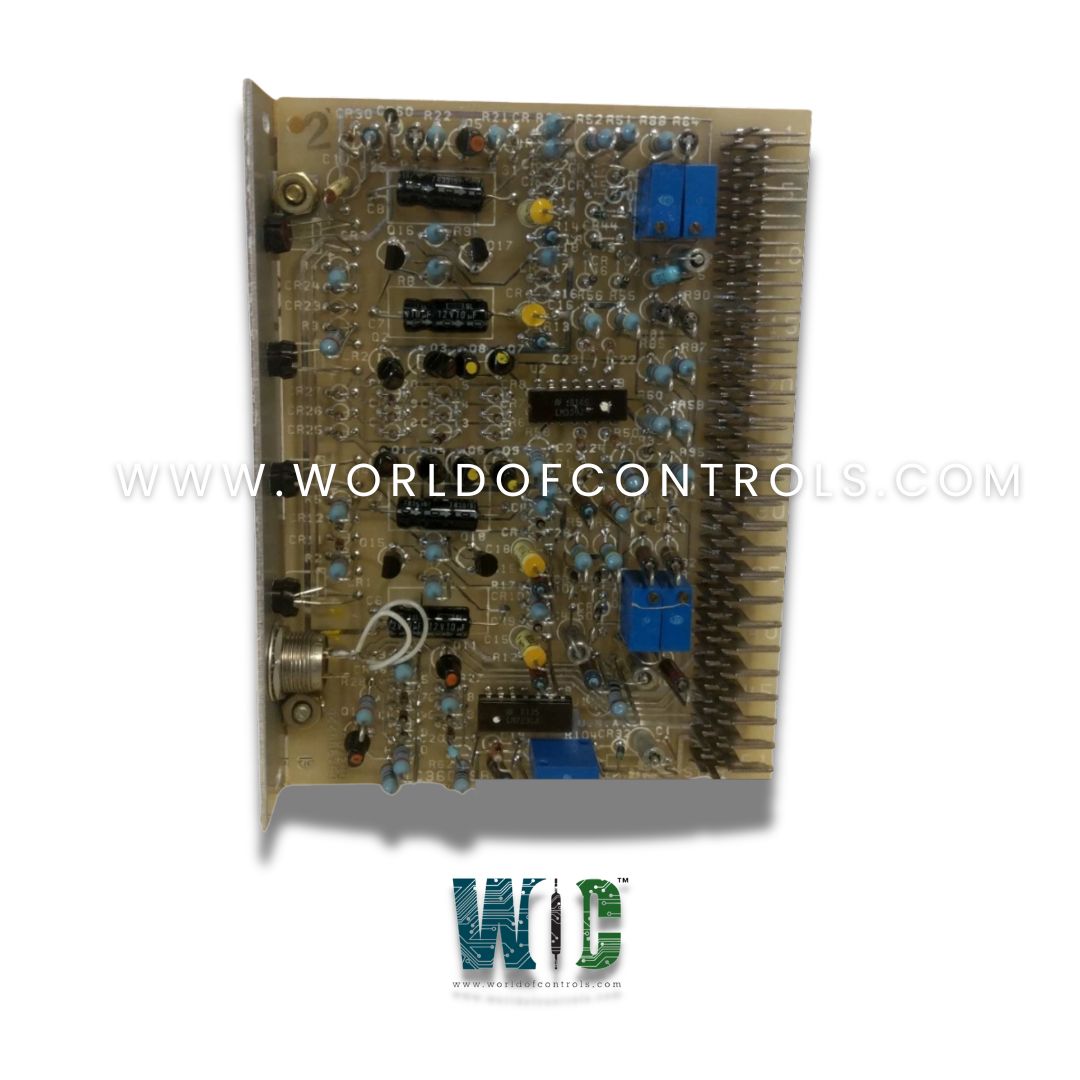

IC3600SBMB1 - Power Supply Bus Monitoring Board

SPECIFICATIONS

Part Number: IC3600SBMB1
Manufacturer: General Electric
Series: Mark I and II
Function: Power Supply Bus Monitoring Board
Repair: 3-7 Day
Technology: Surface-mount
Availability: In Stock
Country of Manufacture: United States (USA)

Functional Description

IC3600SBMB1 is a Power Supply Bus Monitoring Board manufactured and designed by General Electric. The board monitors the status and performance of power supply buses, ensuring stable and reliable distribution of power across the control system. The module detects anomalies in voltage or current, enabling operators to take corrective actions to prevent faults and ensure continuous turbine operation.

Features

• This board is responsible for monitoring the status and performance of power supply buses, ensuring the stable and reliable distribution of power across the turbine’s control system. By continuously assessing voltage and current levels, the IC3600SBMB1 is able to detect anomalies or fluctuations in the electrical supply. These early detections allow system operators to take timely corrective actions, preventing faults, minimizing downtime, and ensuring the uninterrupted operation of the turbine.
• The power supply system in these turbine controls typically uses unregulated DC power sourced from the station battery, which is then converted into precision-regulated outputs required by the electronic control cards. These power supplies are engineered with generous operational margins to ensure cool operation and long service life.
• Critical power supply units are equipped with short-circuit and overvoltage protection, which helps in preventing the propagation of failures across the system. Additionally, great attention is given to suppressing current and voltage transients, which could otherwise damage sensitive components or introduce electrical noise into the control electronics.
• Most of these power supplies utilize switching-mode regulation technology, offering high efficiency and compact design. In some cases, they are paired with follow-on series regulators to deliver precision voltage outputs required for stable system performance.

WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, contact us.

FREQUENTLY ASKED QUESTIONS

What is IC3600SBMB1?
It is a Power Supply Bus Monitoring Board manufactured and designed by General Electric.

What type of power supply does this module monitor?
It monitors regulated DC power converted from unregulated DC station batteries, ensuring voltage and current remain within operational limits.

How does it enhance system reliability?
By detecting voltage or current anomalies, the board allows operators to take corrective action early, helping to prevent system faults and downtime.
