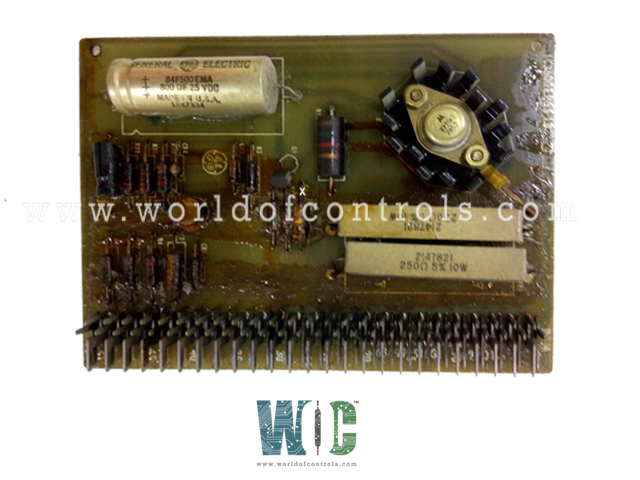

IC3600EPSS1B - 50 V / 12 V Voltage Regulator Control Card

SPECIFICATIONS:

Part No: IC3600EPSS1B
Manufacturer: General Electric
Series: Mark II
Input Voltage Range: 40V to 50V DC
Output Voltage: 12V DC
Output Current: 1A to 10A
Output Power: 12V
Ripple and Noise: ≤50mV
Switching Frequency: 100kHz
Operating Temperature Range: -40°C to +85°C
Dimensions: 134.6mm x 130.3mm x 25.4mm
Weight: 0.45 kgs
Condition: New
Availability: In Stock
Country of Origin: USA

FUNCTIONAL DESCRIPTION:

IC3600EPSS1B is a 50 V / 12 V Voltage Regulator Control Card manufactured and designed by General Electric as part of the Mark II Series used in GE Speedtronic Control Systems. This series of fixed-voltage integrated-circuit regulators is engineered for a broad range of applications, particularly on-card regulation where minimizing noise and improving distribution efficiency is critical. Capable of delivering up to 1.5 A of output current, these regulators feature built-in current limiting and thermal shutdown protections, ensuring reliable performance even under overload conditions. Beyond fixed-voltage operation, they can be combined with external components to achieve adjustable output voltages and currents, and can also serve as power-pass elements in precision regulation systems.

Equipped with built-in current-limiting and thermal-shutdown protection, these devices are highly resilient against overload conditions, ensuring greater reliability and longer operational life. Beyond fixed-voltage applications, they can be paired with external components to achieve adjustable output voltages and currents, offering flexibility for custom designs. Additionally, they can function as power-pass elements in precision voltage regulation systems, making them versatile solutions for both standard and specialized circuit requirements.

FEATURES OF VOLTAGE REGULATOR CONTROL CARD:

• Three-Terminal Design: Simplifies connection and integration into various circuit layouts.
• Multiple Fixed-Voltage Options: Available in standard output voltages including 5 V, 8 V, 10 V, 12 V, 15 V, and 24 V to suit a broad range of applications.
• High Output Current Capability: Supports output currents up to 1.5 A, ideal for medium to high power applications.
• Built-In Thermal-Overload Protection: Automatically shuts down the device during excessive thermal conditions to prevent damage and ensure long-term reliability.
• Enhanced Power-Dissipation Capacity: Designed to handle high power levels efficiently, making it suitable for demanding load conditions.
• Short-Circuit Protection: Integrated internal short-circuit current limiting protects both the regulator and the load against faults.
• Safe-Area Compensation for Output Transistor: Maintains safe operation under all load conditions, improving device durability.
• Stable Operation Without Output Capacitor: Designed for stability without requiring external capacitors, reducing component count and simplifying circuit design.

WOC has the largest stock of OEM Replacement Parts for GE Speedtronic Gas Turbine Control Systems. We can also repair your faulty boards and supply unused and rebuilt boards backed up with a warranty. Our team of experts is available around the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on parts and repairs, kindly contact our team by phone or email.

FREQUENTLY ASKED QUESTIONS:

What is a 50V/12V Voltage Regulator Control Card?

A 50V/12V Voltage Regulator Control Card is an electronic device designed to regulate and control the voltage levels within an electrical circuit. It ensures a stable output voltage (12V) while managing higher input voltages (50V) to prevent damage to sensitive components in the system.

How does the Voltage Regulator Control Card work?

The card uses a series of components such as diodes, resistors, and transistors to step down the input voltage (50V) to a regulated 12V output. It monitors the input voltage and adjusts the regulation to maintain the required output.

What is the maximum output power of the 50V/12V Voltage Regulator?

The maximum output power depends on the output current and voltage. For instance, if the regulator outputs 12V at a maximum of 5A, the maximum output power would be 60W (12V x 5A). Always check the datasheet for exact values.
