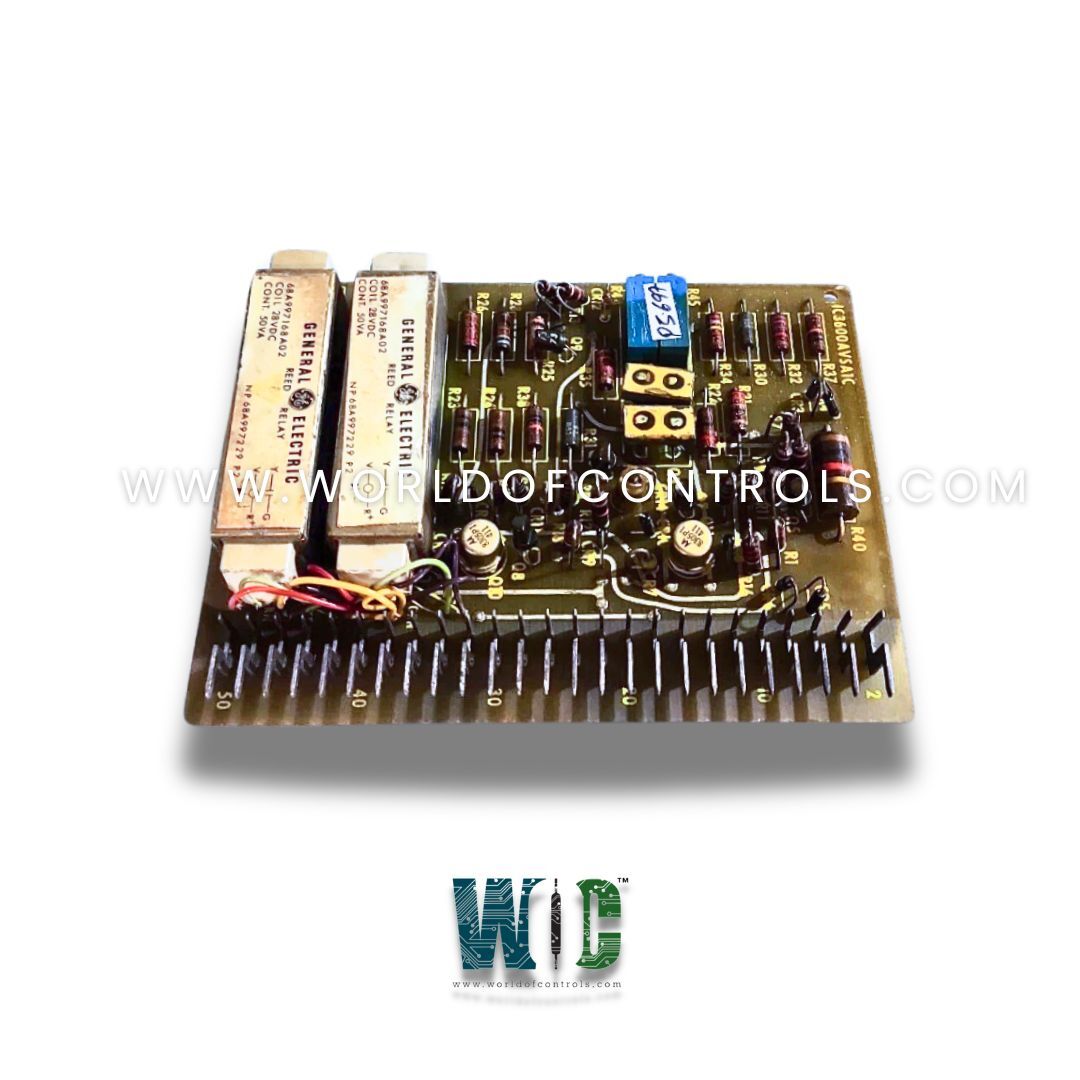

IC3600AVSA1 - Voltage Isolator Relay Board

SPECIFICATIONS:

Part No: IC3600AVSA1
Manufacturer: General Electric
Product Type: Voltage Isolator Relay Board
Series: Mark II
Availability: In Stock
Weight: 2.90 lbs
Dimensions: 19.00 x 12.50 x 3.50
Country of Origin: USA

FUNCTIONAL DESCRIPTION:

IC3600AVSA1 is a Voltage Isolator Relay Board manufactured and designed by General Electric is part of Mark I & II Series used in gas turbine control systems. A Voltage Isolator Relay Board (VIRB) is a device used to provide electrical isolation and relay control for different voltage levels. It is commonly used in industrial and automation applications where there is a need to interface between different voltage systems and ensure proper isolation to protect sensitive components. The primary function of a Voltage Isolator Relay Board is to provide a barrier between two voltage domains, such as low-voltage control signals and higher-voltage power circuits. It prevents the high-voltage side from affecting or damaging the low-voltage side and vice versa. This isolation is typically achieved using opto-isolators or other isolation techniques, which use light or magnetic fields to transmit signals across the isolation barrier.

FEATURES:

Voltage Isolator Relay Boards typically offer a range of features that make them suitable for electrical isolation and relay control applications. Here are some common features you might find in a Voltage Isolator Relay Board:

Isolation Barrier: The board incorporates an isolation barrier that separates the high-voltage and low-voltage sections, providing electrical isolation and protecting sensitive components from voltage spikes or surges.

Opto-Isolators: These components use light to transmit signals across the isolation barrier, ensuring reliable and noise-free communication between the different voltage domains.

Relay Outputs: The board includes relay circuits that can be controlled by low-voltage signals. These relays serve as electromechanical switches to handle higher voltage loads or control external devices.

Input Voltage Compatibility: Voltage Isolator Relay Boards are designed to support a specific input voltage range, such as 24V DC or 110V AC. It's essential to select a board that matches the voltage requirements of your application.

Output Voltage Compatibility: The relays on the board are capable of switching specific output voltage levels, which should be compatible with the devices or equipment you intend to control.

Mounting Options: Voltage Isolator Relay Boards can be designed for panel mounting or DIN rail mounting, allowing for easy installation in electrical enclosures or control cabinets.

WOC has the largest stock of GE Speedtronic Gas Turbine Control System Replacement Parts. We can also repair your faulty boards. WORLD OF CONTROLS can also supply unused and rebuilt backed-up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.

FREQUENTLY ASKED QUESTIONS:

What is the purpose of a Voltage Isolator Relay Board?

A Voltage Isolator Relay Board is designed to provide electrical isolation between different voltage domains and control relay circuits. It ensures that high-voltage signals or circuits do not interfere with or damage low-voltage components, allowing for safe and reliable operation.

Where are Voltage Isolator Relay Boards commonly used?

These boards find applications in industrial automation, process control systems, motor control centers, power distribution panels, and other similar environments where there is a need to interface between different voltage levels while maintaining electrical isolation.

What are the relay outputs used for on a Voltage Isolator Relay Board?

Relay outputs on the board allow for the control and switching of higher voltage loads or external devices based on the low-voltage control signals received. These relays serve as electromechanical switches.
