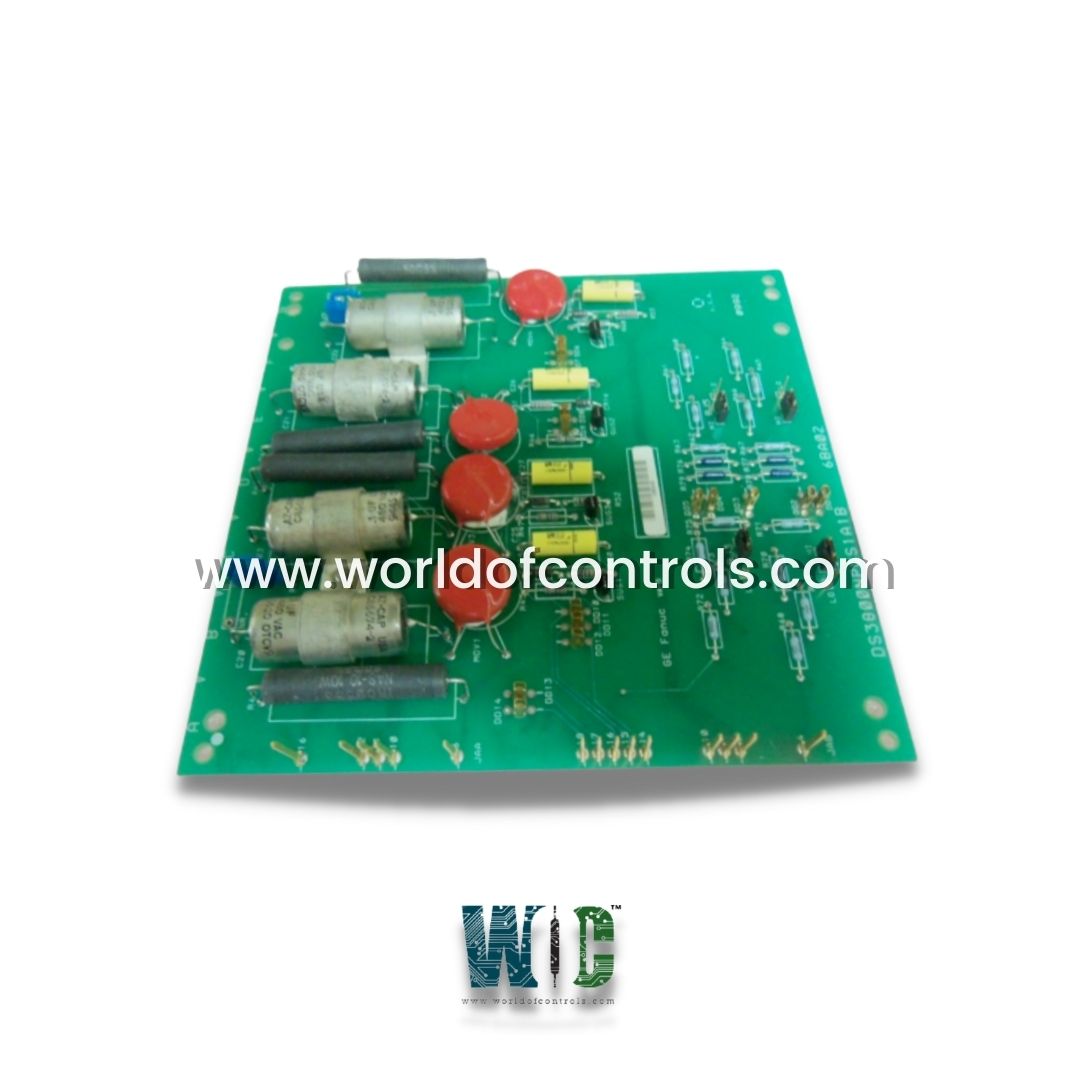

DS3800NPCS - Field Exciter Snubber Board

SPECIFICATIONS:

Part Number: DS3800NPCS
Manufacturer: General Electric
Series: Mark IV
Product Type: Field Exciter Snubber Board
Number of channels: 12
Operating temperature: -30 to 65 °C
Size: 8.26 cm high x 4.19 cm
Repair: 3-7 Day
Availability: In Stock
Weight: 2 lbs
Country of Origin: United States

FUNCTIONAL DESCRIPTION:

DS3800NPCS is a Field Exciter Snubber Board manufactured and designed by General Electric as part of the Mark IV Series used in GE Speedtronic Gas Turbine Control Systems. A field exciter snubber board is a circuit board used in power systems to control the voltage and current in a generator's field excitation system. The snubber board is designed to protect the power transistors and diodes in the field excitation system by preventing voltage spikes and high-frequency noise that can damage the components. The snubber board works by adding a series of resistors and capacitors to the circuit. The resistors limit the current and the capacitors store and release energy to smooth out the voltage spikes. This reduces stress on the power transistors and diodes, which can extend their lifespan and reduce maintenance costs.

Field exciter snubber boards are typically used in large industrial generators, such as those used in power plants, as well as in wind turbines and other renewable energy systems. They are an important component in ensuring the reliability and longevity of these critical power systems. Some common features of a field exciter snubber board include:

• Voltage Rating: Field exciter snubber boards are designed to handle specific voltage levels. The voltage rating should be matched to the voltage of the generator's field excitation system to ensure proper protection.

• Current Capacity: The snubber board should be able to handle the maximum current that the generator's field excitation system can produce.

• Frequency Range: The snubber board should be designed to operate within the frequency range of the generator's field excitation system.

• Temperature Range: The snubber board should be designed to operate within the temperature range of the environment in which it will be installed.

• Mounting Style: Snubber boards may be available in different mounting styles, such as surface mount or through-hole, to accommodate different installation requirements.

• Component Quality: High-quality components should be used in the construction of the snubber board to ensure reliability and longevity.

• Compatibility: The snubber board should be compatible with the specific make and model of the generator's field excitation system.

WOC has the largest stock of GE Speedtronic Gas Turbine Control System Replacement Parts. We can also repair your faulty boards. We can also supply unused and rebuilt backed-up with a warranty. Our team of experts is available round the clock to support your OEM needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. For pricing and availability on any parts and repairs, kindly get in touch with our team by phone or email.

FREQUENTLY ASKED QUESTIONS:

What is a field exciter snubber board?

A field exciter snubber board is a circuit board used in power systems to control the voltage and current in a generator's field excitation system. It is designed to protect the power transistors and diodes in the field excitation system by preventing voltage spikes and high-frequency noise.

Why is a field exciter snubber board needed?

Field exciter snubber boards are needed to protect the power transistors and diodes in the field excitation system from voltage spikes and high-frequency noise. Without a snubber board, these components can be damaged or fail prematurely, leading to costly repairs and downtime.

How does a field exciter snubber board work?

A field exciter snubber board works by adding a series of resistors and capacitors to the circuit. The resistors limit the current and the capacitors store and release energy to smooth out the voltage spikes. This reduces stress on the power transistors and diodes, which can extend their lifespan and reduce maintenance costs.
