DS200VPBLG1A - VME Backplane Board

DS200VPBLG1A - VME Backplane Board DS200VPBLG1A - VME Backplane Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS200VPBLG1A - VME Backplane Board is available in stock which ships the same day.

DS200VPBLG1A - VME Backplane Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS200VPBLG1A - VME Backplane Board, contact us and we will get back to you within 24 hours.


Part Number: DS200VPBLG1A
Manufacturer: General Electric
Product Type: VME Backplane Board
Series: LCI
Availability: In Stock
Country of Origin: United States

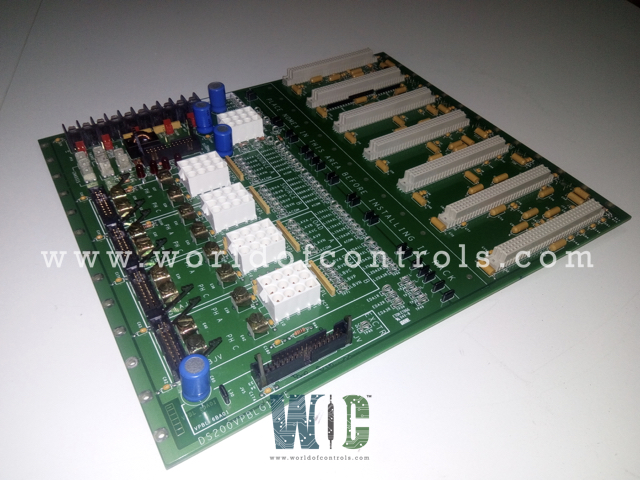

DS200VPBLG1A is a VME Backplane Board designed by General Electric as a part of the LCI series used in load commutator inverter control systems. The VPBL board is multilayer and the analog and the digital power planes are kept separate. There are power distribution and bypass capacitors at each power connection at each slot. The DS200VPBL VME backplane for the J2, and J3 sections of the equipment card cage. The J1 section is a commercially purchased product. The section J2 supports a number of boards:

  • Digital signal processor control board (DSPC) with daughter boards in slot J1.
  • I/O extends with daughter boards in slot J3, to the right of the DSPC.
  • Up to three gate distribution and status boards FCGD in slots, J5, J7 and J9

The section J3 area is used for external connections that are not on board fronts because of space or other restrictions these include connections to the current transformers (CT) and their associated burden resistors and voltage scaling feedback board (NATO) connection for the FCGD.

WOC supports a large number of GE Speedtronic and GE Excitation Spare Parts, including DS200VPBLG1A. Please do not hesitate to contact us if you require additional information or have a question.


What is LCI DS200VPBLG1A?

General Electric VME Backplane Board is part of the LCI series and is utilized in load commutator inverter control systems.

What is a VME backplane?

The VME bus is a backplane bus interface that can be scaled up or down.
