Part Number: DS200TCCBG1A
Manufacturer: General Electric
Series: Mark V
Product Type: Common Extended Analog I/O Board

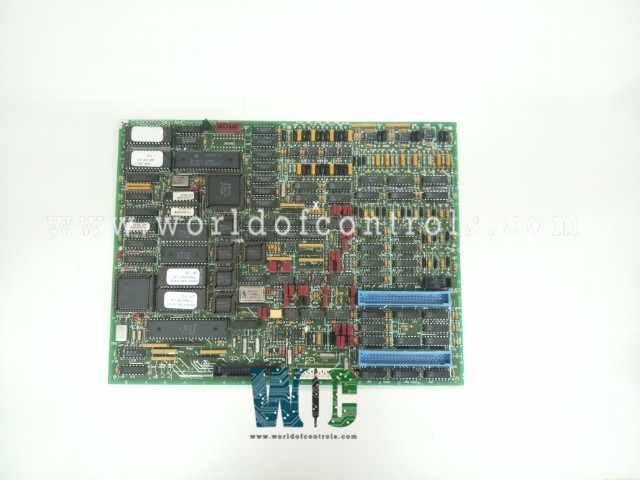

One 80196 microprocessor and numerous PROM modules are included in the GE I/O TC2000 Analog Board DS200TCCBG1A.

  • One LED and two 50-pin connectors are also included. From the side of the board, the LED is visible. JCC and JDD are the IDs for the 50-pin connectors.
  • There are additionally five 34-pin connectors on the PCB. JAA, JBB, JAT, JAS, and JAR are the IDs for the five connectors. Because there are numerous 34-pin connectors on the DS200TCCBG1A, it's crucial to keep track of where the ribbon cables are linked before disconnecting them.
  • It's critical to get the drive back online as soon as possible, which necessitates making the proper signal connections while replacing the board and restarting the drive. You may not realize you've made the improper connections until you've restarted the drive and discovered that the board isn't transmitting or receiving the correct signals. You can then turn off the drive and reattach the ribbon cables.
  • Examine where the ribbon cables or other cables are linked to the connectors carefully before disconnecting them. Make a note of the connection IDs. Write the connection IDs on strips of masking tape or stickers and glue the tape or sticker to the ribbon cable. The ribbon wires can then be disconnected from the board's connections.
  • Avoid removing the ribbon cable from the ribbon area of the cable when disconnecting the cables. The fine copper strands will be pulled out of the connector as a result of this.

WOC has the largest stock of Speedtronic Mark V control spares. We can repair your faulty DS200TCCBG1A. WORLD OF CONTROLS can also supply unused and rebuilt parts backed up with a warranty. Our team of experts is available round the clock to support your DS200TCCBG1A needs. Our team of experts at WOC is happy to assist you with any of your automation requirements. Please contact our staff by phone or email for pricing and availability on any parts and repairs.



FREQUENTLY ASKED QUESTIONS



Which hardware jumpers are used in the DS200TCCBG1A and what are their functions?

The generator and bus voltage monitoring functions, as well as the line current monitoring function, are provided by the hardware jumpers J1-J5 on DS200TCCBG1A. On the DS200TCCBG1A, hardware jumper J14 connects the RS-232 serial port to DCOM, while hardware jumpers J15 and J16 are utilized for testing.


What is the purpose of DS200TCCBG1A?

The DS200TCCBG1A is the Common Data Processor's extended analog I/O board.
