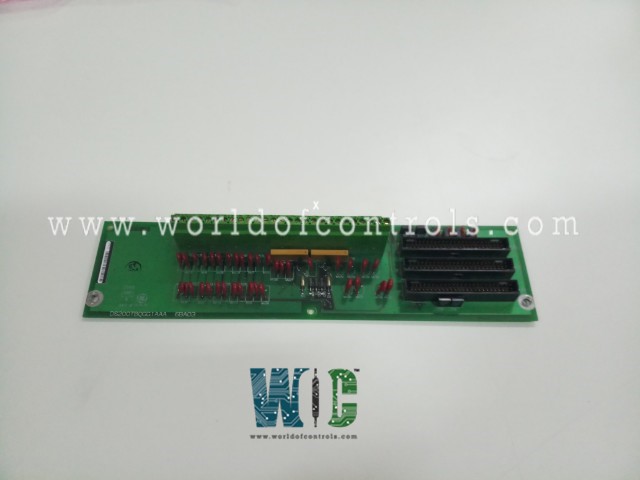

DS200TBQGG1A - LM6000 Analog Termination Module

DS200TBQGG1A -  LM6000 Analog Termination Module DS200TBQGG1A -  LM6000 Analog Termination Module

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS200TBQGG1A - LM6000 Analog Termination Module is available in stock which ships the same day.

DS200TBQGG1A - LM6000 Analog Termination Module comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS200TBQGG1A - LM6000 Analog Termination Module, contact us and we will get back to you within 24 hours.

Specifications

Part No.: DS200TBQGG1A
Manufacturer: General Electric
Product Type: LM6000 Analog Termination Module
Series: Mark V Speedtronic

DS200TBQGG1A is an LM6000 Analog Termination Module under Mark V series. Location 7 of the R1 core houses the LM6000 Analog Termination Module (TBQE). All of the inputs and outputs required by the TCQE board in the R1 core are included in TBQE, which is used for all LM engine applications. The proximity transducer, accelerometer, LVDT/R position feedback inputs, RTD inputs, and pulse rate signals for LP Shaft speed monitoring and shear protection applications are among the inputs read by the TBQE terminal board. For processing, these signals are written to the TCQE board. The TBQE terminal board is written with the TCQE's 4 -20 mA outputs.

TBQE Connections

  • JLLR writes the pulse rate, RTD, and LVDT/R position inputs to the TCQE board in the R1 core. reads the TCQE board's mA output signals in the R1 core.
  • The proximitor and vibration signals are written by JQQR to the TCQE board in the R1 core.
  • JLLS/T - Not used
  • JQQS/T - Not used

TBQE Hardware Configuration

BJ1 and BJ2: These two mA output signals allow you to choose between a maximum current output range of 20 mA or 200 mA.

Other Features

  • There are two terminal blocks on the GE Gas Turbine Termination Board. Each block comprises 95 signal wire connections. 2 jumpers and 6 34-pin connectors are also included.
  • The board measures 11.25 inches wide by 3 inches high and has five holes for attaching it to the drive's inside. The drive cabinets inside comprise racks that support the boards and feature screw holes that line up with the holes on the boards.
  • Examine the cabinet and note where the old board is installed when you're ready to install the replacement board. Installing the replacement in the same location is the best approach. It's also crucial to pay attention to where the cables are linked on the board and how they're routed.
  • The signal wires attached to the terminals are also affected. The free passage of air inside the drive will be hampered or blocked by improper cable routing. The drive's components generate heat, and the drive relies on airflow to keep the inside cool. The drive will overheat the situation if the interior grows too hot, and it will shut down immediately.
  • Another advantage of cable routing is that if power and signal cables are routed too near together, the two types of wires will interfere. If the signal and power wires are connected in parallel, interference can occur. Interference can be avoided by using proper cable routing.

As DS200 series is no longer in production, we recommend keeping a minimum of two cards of each panel on hand. Unused and rebuilt cards are also available from WORLD OF CONTROLS. Our team of professionals is accessible 24 hours a day, 7 days a week to assist you with your Mark V needs. Contact us today.



Frequently asked questions



How many terminal blocks does DS200TBQGG1A have?
There are two terminal blocks on the GE Gas Turbine Termination Board.

What is the importance of cable routing?
The free passage of air inside the drive will be hampered or blocked by improper cable routing. Additionally, appropriate cable routing will avoid power cables from interfering with signal lines.

How many terminals does a DS200TBQGG1A terminal block have?
There are 95 signal wire terminals on each of the terminal blocks.
