DS200SLCCG3A - LAN Communication Card

DS200SLCCG3A - LAN Communication Card DS200SLCCG3A - LAN Communication Card

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS200SLCCG3A - LAN Communication Card is available in stock which ships the same day.

DS200SLCCG3A - LAN Communication Card comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS200SLCCG3A - LAN Communication Card, contact us and we will get back to you within 24 hours.


Part No.: DS200SLCCG3A
Manufacturer: General Electric
Product Type: LAN Communications Card
Series: Mark V & EX2000

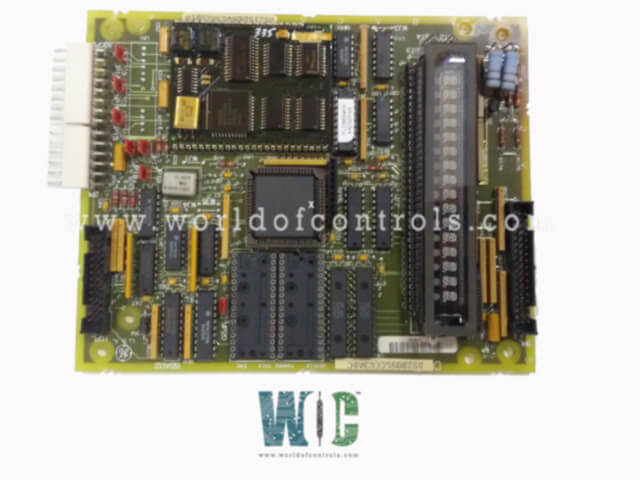

DS200SLCCG3A is a LAN Communication Card and is part of the GE Speedtronic Mark V & EX2000 gas turbine control system. The LAN Communication Card (SLCC) contains both isolated and no isolated circuits for communication inputs to the controller. The SLCC board connects to the NTB/3TB, SDCC, TCCB, and to the DCFB through a 2PL connector. The SLCC boards are used in either Mark V (or) EX2000 control cabinet. An operator interface module that includes a digital display and keypad used for software adjustment diagnostic testing and digital readout of fault codes included on the SLCC board. The SLCC features a 16 position alphanumeric display (and display controller U-18) that connects to the programmer module.

  • The programmer module mounts on the SLCC and plugs into a connector (KPPL). The principal microprocessor on the SLCC is the LAN control processor (U1).
  • The LCP software is stored in replaceable EPROMS (U6, U7). The LCP dedicated RAM is provided by (U8, and U9).
  • Dual ported RAM (U5) is used for communication between the LCP and the driver controller processor (DCP) on the DS215SDCC Drive control card (SDCC) via 3PL.

The most extensive inventory of GE Speedtronic Mark V control replacement parts can be found at World of Controls. Our professionals are always accessible to assist you with your Mark V needs. If you want any additional information, please contact WOC.


What is Mark V DS200SLCCG3A?

It is a LAN Communication Card developed under the GE Mark V and EX2000 system.

What microprocessor does the Communication Card use as its primary processor?

The LAN Control Processor, U1 is the main microprocessor in the card. The LCP software is stored in two changeable EPROMs on U6 and U7.

What is included in the Communication Card hardware?

There are two types of jumpers in the DS200SLCCG3A hardware, berg-type hardware jumpers, and wire jumpers.
