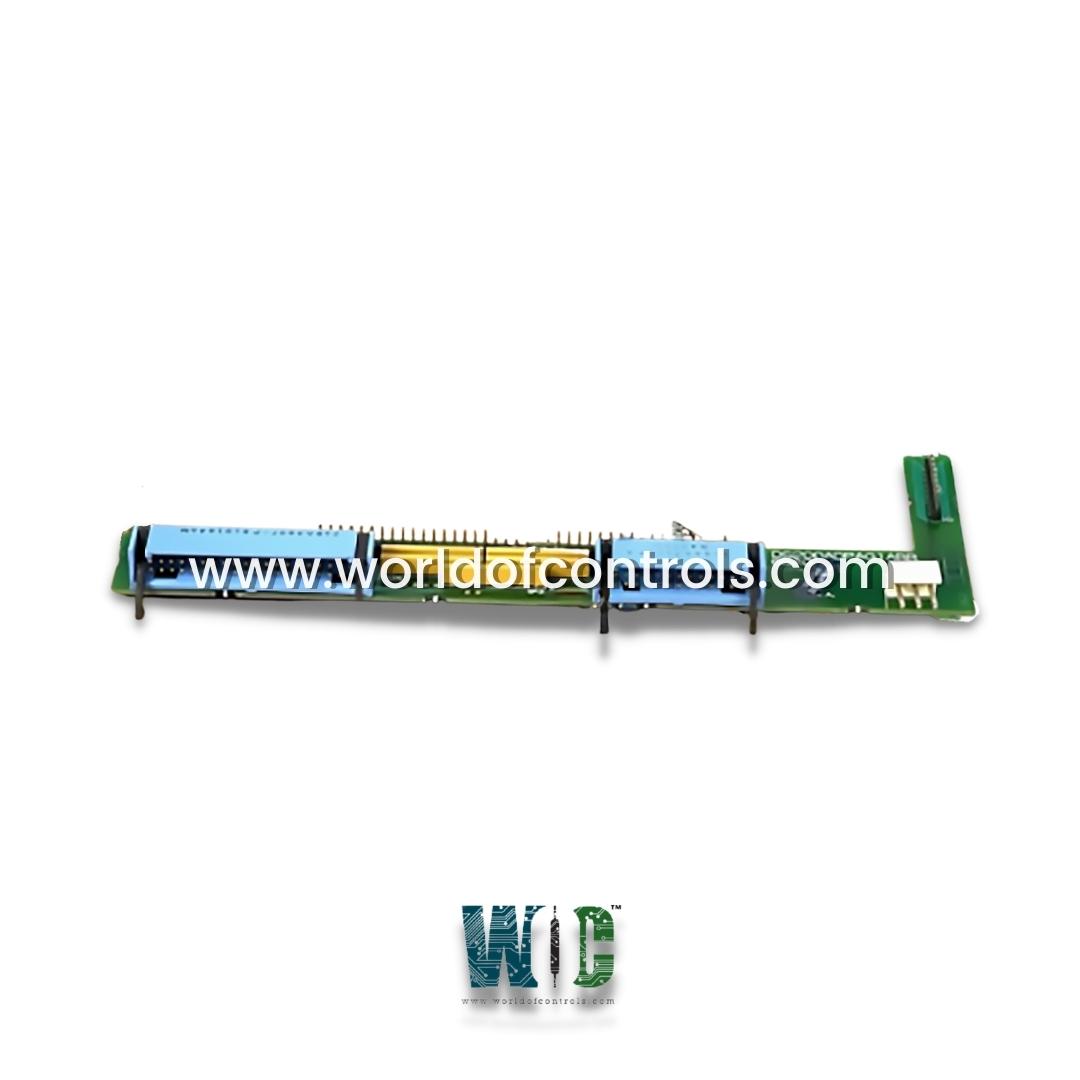

DS200ADPAG1A - Bridge Adaptor Board

DS200ADPAG1A - Bridge Adaptor Board DS200ADPAG1A - Bridge Adaptor Board

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS200ADPAG1A - Bridge Adaptor Board is available in stock which ships the same day.

DS200ADPAG1A - Bridge Adaptor Board comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS200ADPAG1A - Bridge Adaptor Board, contact us and we will get back to you within 24 hours.

SPECIFICATIONS:

Part Number: DS200ADPAG1A
Manufacturer: General Electric
Series: Mark V / Innovation Series
Product Type: Bridge Adaptor Board
Interface Connectors: 10-Pin (J1) and 16-Pin (J2) Vertical Headers
Mounting Type: Quad-Point PCB Stand-off
Operating Temperature: 0 °C to +60 °C
Substrate: High-Density FR-4 Dielectric
Compatibility: Innovation Series Drives & Mark V Turbine Control
Availability: In Stock
Country of Origin: USA

FUNCTIONAL DESCRIPTION:

The DS200ADPAG1A is a specialized Bridge Adaptor Board developed and designed by General Electric for use in GE Innovation Series Drives and Mark V Turbine Control systems. This compact PCB acts as an essential signal routing interface, facilitating critical communication between the power bridge and the main control architecture. It is designed to ensure that feedback signals and control pulses are transmitted with high integrity across the drive system, maintaining the synchronization required for complex motor control and power conversion. The module’s low-impedance traces and vertical header configuration allow for seamless integration between power-side components and low-voltage control logic.

CIRCUIT TOPOLOGY & SIGNAL FLOW:

The Bridge Adaptor Board functions as a passive signal-routing node within the GE drive architecture. Its primary mandate is the galvanic mapping of bridge-level feedback and firing commands between the Power Bridge and the Control Logic Rack. By providing localized termination points for multi-conductor ribbon cables, it maintains the deterministic timing required for high-frequency pulse width modulation (PWM) and sub-millisecond gate-level synchronization. This established link is vital for maintaining real-time data flow and overall system stability.

HARDWARE INTERFACE & INTERCONNECTIVITY:

The physical layer of the board is optimized for high-density signal integrity. It features two primary vertical male headers that serve as the interface for the drive’s internal wiring harness:

  • Header J1 (10-Pin): Dedicated to primary bridge-side feedback, specifically voltage sensing and bridge status monitoring.
  • Header J2 (16-Pin): Utilized for broader control logic signal distribution and synchronization pulses sourced from the master CPU.

The trace geometry is engineered with uniform impedance to prevent parasitic capacitance, ensuring consistent signal propagation across all active channels even in high-speed switching environments.

ELECTROMAGNETIC COMPATIBILITY (EMC):

Given its deployment in high-power switching environments, the DS200ADPAG1A is designed with rigorous immunity to electromagnetic interference (EMI). The board utilizes high-grade copper traces shielded by a specialized dielectric substrate to minimize crosstalk between analog feedback loops and digital firing pulses. This level of signal isolation is critical for the drive's diagnostic chain, enabling the system to accurately detect bridge faults, phase imbalances, and over-voltage transients in real-time without signal noise interference.

REVISION COMPATIBILITY & SYSTEM MAPPING:

The G1A nomenclature identifies this module as a specific Group 1 hardware revision optimized for the A series component mapping. It is a direct mechanical and electrical match for GE Speedtronic and Innovation Series cabinets utilizing the Group 1 pinout configuration. For optimal lifecycle performance, the board is designed for rigid integration using a four-point mounting system onto standard PCB stand-offs. This provides the necessary mechanical damping to withstand the harmonic vibrations and thermal expansions typical of heavy-industrial drive cabinets.

WHY BUY FROM WOC:

WOC maintains the largest inventory of OEM replacement parts for GE Speedtronic and Innovation Series systems, ensuring that you have access to the components you need without delay. In addition to supplying unused and fully rebuilt boards, we also offer expert repair services to restore faulty boards to like-new condition, all backed by a reliable warranty for your peace of mind. Our experienced team is available 24/7 to provide guidance and support for any OEM or automation-related requirements, helping you minimize downtime and keep your systems running smoothly. For pricing, availability, or technical assistance with parts and repairs, simply reach out to our team via phone or email, and we’ll ensure you receive prompt, personalized support.

FREQUENTLY ASKED QUESTIONS:

What is the DS200ADPAG1A?

It is a Bridge Adaptor Board manufactured by General Electric (GE) for the Mark V and Innovation Series drive ecosystems. It functions as a specialized hardware interface that enables the seamless exchange of status feedback and control commands between the power bridge and the main control architecture. As a Group 1 (G1A) revision, it is built to original OEM specifications to ensure direct mechanical and electrical compatibility with legacy industrial power systems.

Does this board contain active semiconductor components?

No, the Bridge Adaptor Board is classified as a passive PCB and does not feature active semiconductor components such as processors or integrated circuits. Instead, it utilizes high-grade, low-impedance copper traces and heavy-duty vertical connectors to facilitate the distribution of signals across the system. This passive design minimizes the risk of electronic component failure while ensuring maximum signal fidelity in high-EMI industrial environments.

How is the board protected against vibration?

To ensure reliability in harsh industrial settings, the board is designed for rigid integration using a four-point mounting system onto standard PCB stand-offs. This mechanical configuration provides the necessary damping to withstand the harmonic vibrations and physical stresses common in high-power drive cabinets. By securing the board firmly to the chassis, the integrity of the ribbon cable connections is maintained, preventing signal intermittency or mechanical wear over time.
