IC693MDL645 -  24-volt DC Positive/Negative Logic Input

SPECIFICATIONS

Part Number: IC693MDL645
Manufacturer: GE Fanuc
Series: Series 90-30
Product Type: 16-Point Input Module

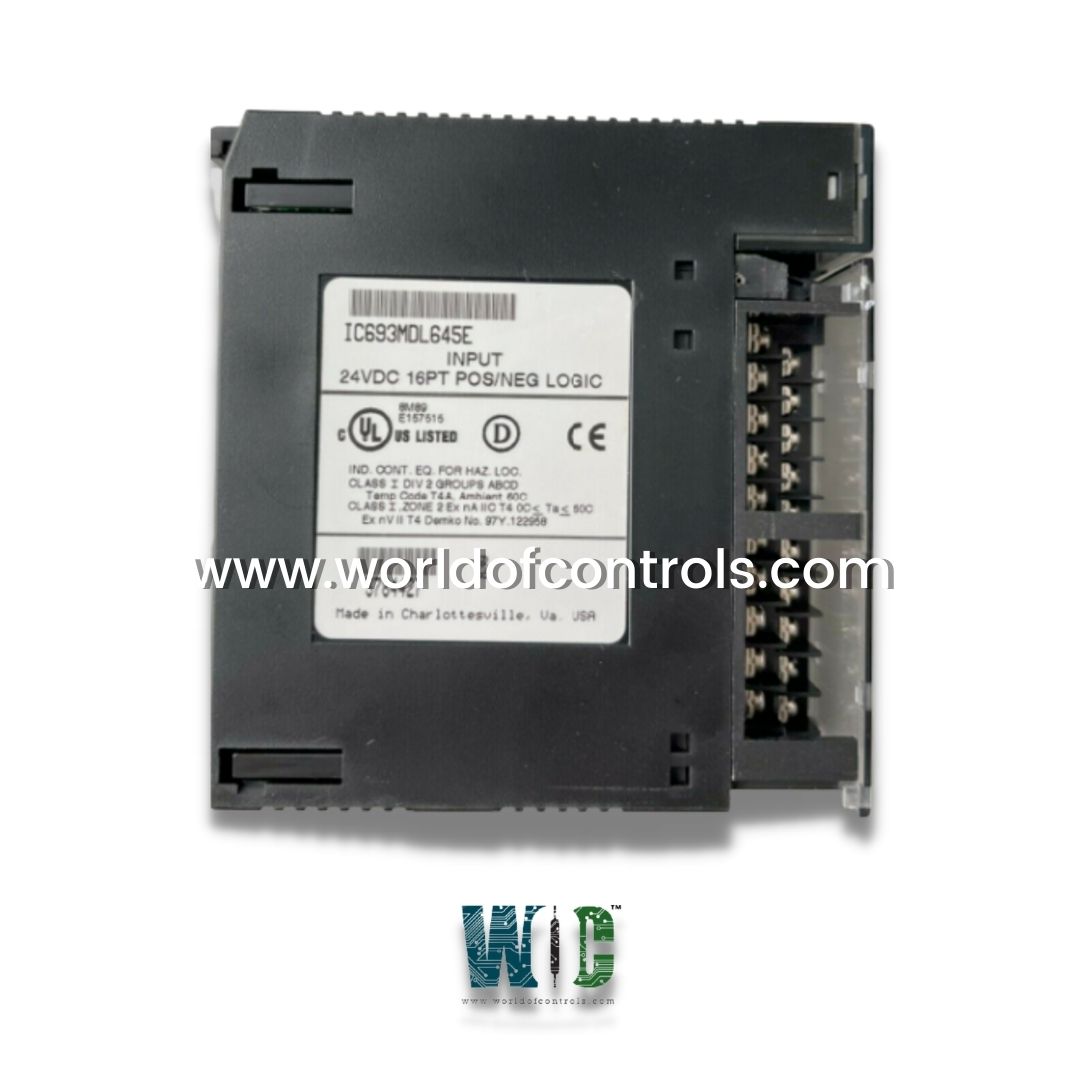

The IC693MDL645 is a positive/negative logic input module, commonly known as the sourcing and sinking input module. This module provides compatibility for both wiring types which provides greater flexibility and fit for a wider application range however, this module only has One group of 16 channels which limits the capability of mixing both wiring types in a single module. The IC693MDL645 Input Module can be configured to function with either positive or negative logic, making it appropriate for a wide range of input devices such as pushbuttons, limit switches, and electronic proximity switches.

• The IC693MDL645 Input Module can be placed in any Series 90-30 PLC I/O slot that accepts a 5- or 10-slot baseplate. The user-supplied external DC power source or an isolated 24 Volts DC power supply are both used by the IC693MDL645 Input Module.

• The input voltage range for this module is 0 to 30 Volts DC, with a maximum backplane power consumption of 80 milliamps at 5 Volts DC and 125 milliamps at 24 Volts DC. The inputs of the IC693MDL645 Input Module have a DC on-state voltage of 15.5 to 30 Volts and a minimum on-state current of 3.2 milliamps per input.

• Between the logic and field sides, it has up to 1500 Volts of isolation. The IC693MDL645 Module insert has both wiring and current identification information, as well as color-coding for easy voltage class identification. This module has two horizontal rows of LEDs on the front that are individually numbered to indicate whether each input point is on or off.

• WOC has the largest stock of GE Fanuc Spare Parts and we can repair your faulty IC693MDL645 with a warranty of 12 months.

• WORLD OF CONTROLS can also supply UNUSED and REBUILT logic input modules with a warranty of 24 months. Our team of experts is available round the clock to support your IC693MDL645 needs.

• Our sales team at WOC is happy to assist you with any of your automation requirements. Please contact our staff by phone or email for pricing and availability on any parts and repairs.

FREQUENTLY ASKED QUESTIONS

Is there a status indication on the IC693MDL645?

The IC693MDL645 status indicators are located on the front panel of the module. One input channel is represented by each LED.

What is the IC693MDL645 operational voltage range?

The operational voltage range of the IC693MDL645 is 0-30 VDC.

What is the baseplate that is compatible with the IC693MDL645?

A series 90-30 baseplate, 5-slot, or 10-slot chassis is compatible.
