IC3600SVSA1E - GE High Speed Sensor Circuit Board

SPECIFICATIONS

Part Number: IC3600SVSA1E
Manufacturer: General Electric FANUC
Series: Mark I & II
Function: Circuit Board

IC3600SVSA1E is a High-Pressure Speed Sensor Circuit board and is part of the GE FANUC Speedtronic Mark I & II gas turbine control systems. This is a type of printed circuit board, also known as a PCB. This card contains 5-speed sensors with a given pickup fixed or adjustable and deep-out characteristics. These are

• 144m - Minimum Speed
• 144A - Accelerate Speed
• 144s - Operating Speed
• 144 R - Zero Speed
• NMR - Speed Monitor

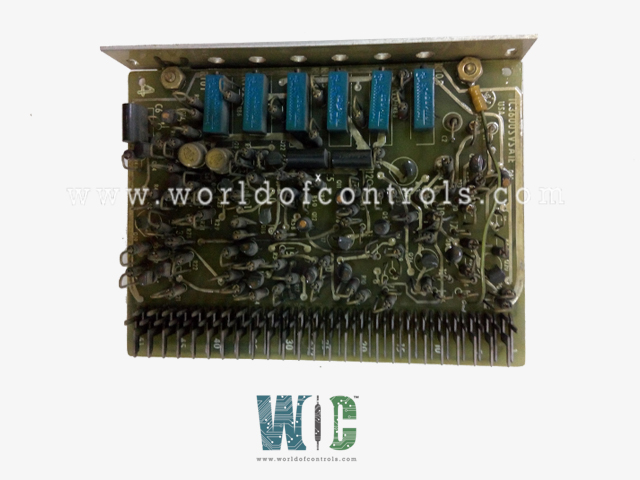

The first 3 sensors operate a common input and output signal N4P. The zero-speed sensor operates directly from an electromagnetic pickup. The speed monitor receives a 0-10v signal and gives a logic output at MR and MR bar for a preset input level. The IC3600SVSA1E has a row of metal prongs that runs the length of the printed circuit board. These are located on the right side of the IC3600SVSA1E. A row of six blue potentiometers is located opposite these prongs. These components, also known as variable resistors, have small knobs that can be adjusted to change the device's resistance.

• Many more of these resistors, some of which are banned in different colors, can be found throughout the circuit board. On the surface of the IC3600SVSA1E, there are also several small transistors. Each transistor is black and circular.

• Wires connect some of the components to other parts of the board. The full part number for this part, IC3600SVSA1E, is printed in yellow near the upper left corner of the printed circuit board.

• WOC has the largest stock of Speedtronic Mark I-II spares and we can repair your faulty IC3600SVSA1E with a warranty. WORLD OF CONTROLS can also supply UNUSED and REBUILT components backed up with a warranty. Our team of experts is available round the clock to support your sensor circuit board needs, contact us.



FREQUENTLY ASKED QUESTIONS

What is Mark I & II IC3600SVSA1E?

The IC3600SVSA1E is a circuit board for high-speed sensors.

Does the IC3600SVSA1E have a Warranty?

WOC can also supply UNUSED and REBUILT IC3600SVSA1E backed up with a warranty of 24 months.

How to speak to someone at WOC?

Please contact World of Controls FZE for sales at +1 609 385 1231
