DS200TCQCG1BJF - RST OVERFLOW BOARD

SPECIFICATIONS

Part Number: DS200TCQCG1BJF
Manufacturer: General Electric
Series: MKV
Function: Processor Card

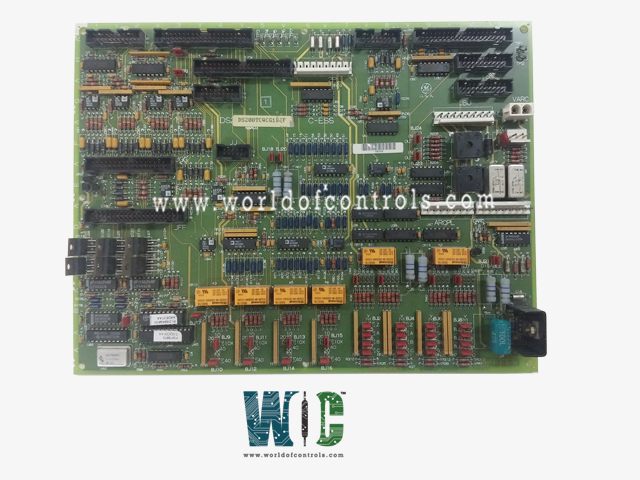

DS200TCQCG1BJF is an RST Overflow Board and is part of the GE Speedtronic Mark V gas turbine control systems. The DS200TCQCG1BJF RST Overflow Board is equipped with 24 jumpers and three 40-pin connections. There are three 34-pin connectors and one 16-pin connector on the board. The 16-pin connector has the ID JC given to it. JFF, JE, and 6PL are the IDs allocated to the 40-pin connectors. Several relays on the GE RST Overflow Board DS200TCQCG1BJF switch on and off circuits on the board. The relays are attached to the board with leads and require no maintenance.

• JFF, 1PL, and JA are the IDs of the 34-pin connectors. Ribbon cables connect the GE RST Overflow Board DS200TCQCG1BJF to other boards and components in the drive using the 40-pin and 34-pin connectors.

• WOC has the largest stock of Speedtronic Mark V control spares and we can repair your faulty DS200TCQCG1BJF with a warranty of 12 months. WORLD OF CONTROLS can also supply UNUSED and REBUILT DS200TCQCG1BJF backed up with a warranty of 24 months.

• Our team of experts is available round the clock to support your DS200TCQCG1BJF needs. Our sales team at WOC is happy to assist you with any of your automation requirements. Please contact our staff by phone or email for pricing and availability on any parts and repairs.



FREQUENTLY ASKED QUESTIONS

What is the function of DS200TCQCG1BJF?

DS200TCQCG1BJF is an RST Overflow Board equipped with 24 jumpers and three 40-pin connections.

How long does it take for a WOC DS200TCQCG1BJF to Ship?

WOC has a vast inventory and can fill a large number of orders on the same day. For more information, please contact us.
