DS200TCDAG1ADA - GE DIGITAL I/O BOARD FOR MARK V

SPECIFICATIONS

Part No.: DS200TCDAG1ADA
Manufacturer: General Electric
Product Type: Digital I/O Board
Series: Mark V

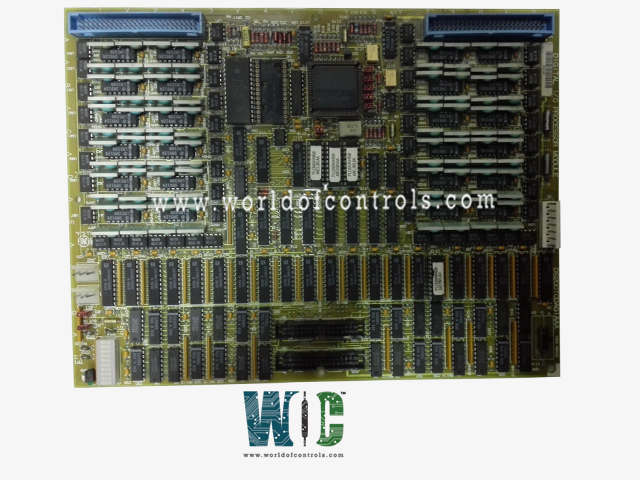

DS200TCDAG1ADA is a Digital I/O Board developed by GE. One microprocessor and some programmable read-only memory (PROM) modules are included in this General Electric Digital I/O Board. It also has a built-in block of 10 LED lights as well as a pair of 50-pin connectors. The board additionally has up to eight jumpers and one visible LED on the side of the board. One 50-pin connector is labeled JQ, while the other is labeled JR. The IDs are printed on the board's surface.

• The replacement board for the component may be a later version of the same model if it is defective. The most recent version will also feature the most recent design updates in the spirit of product improvement. This may necessitate rearranging components on the board in order to accommodate new circuit designs.
• Even if the 50-pin connectors are moved to new locations, one 50-pin connector will be given the ID JQ and the other will be given the ID JR. Based on the IDs, the ribbon cables can be attached to the proper connectors.
• The jumpers allow a signal to be sent between two of the jumper's three pins. The jumper can, for example, cover pins 1 and 2 or pins 2 and 3. If pins 1 and 2 are both covered, the signal is routed between them, and pin 3 is not connected to the circuit.

World of Controls has the most comprehensive selection of GE Speedtronic Mark V control components. At any time, our professionals are available to help you with your Mark V requirements. Please contact WOC as soon as possible if you require any extra information.



Frequently Asked Questions



What is DS200TCDAG1ADA?
DS200TCDAG1ADA is a Digital I/O Board developed by GE.

How to Obtain DS200TCDAG1ADA?
World of Controls provides DS200TCDAG1ADA as well as other turbine control products. Contact WOC.
