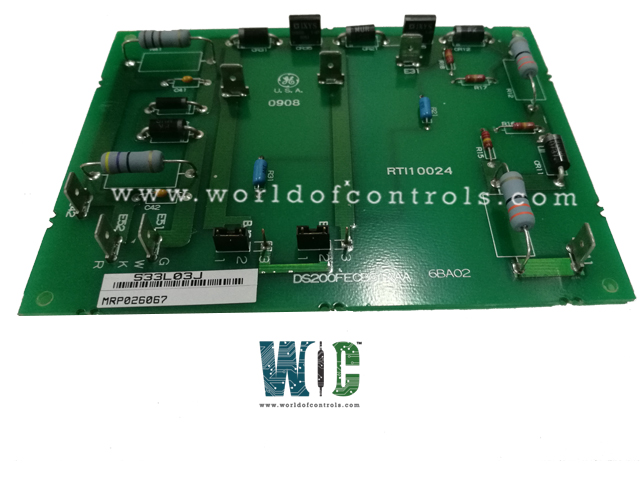

DS200FECBG1AAA - Field Exciter Control Board

SPECIFICATIONS

Part Number: DS200FECBG1AAA
Manufacturer: General Electric
Country of Manufacture: United States (USA)
Series: Mark V
Function: Field Exciter Control Board

Functional Description

DS200FECBG1AAA is a Field Exciter Control Board developed by GE. It is part of the GE Speedtronic Mark V control system. Ensures stable voltage output, efficient power generation, and reliable system performance. Integrated overvoltage protection circuits safeguard against excessive voltage levels. Prevents damage to electrical components during system fluctuations.

Features

• Overvoltage Protection Controller: Equipped with an overvoltage protection controller, which helps store high-voltage current during normal operation.
• Jumpers for Configuration: The board includes two configurable jumpers, labeled BJ1 and BJ2, which allow for customization of its operational settings based on system requirements.
• Power Supply and Conversion: Relies on an external power supply to convert AC input to the necessary DC voltage, ensuring proper functionality of the excitation system.

Diagnostic Test Points

• The board features multiple diagnostic test points integrated into its base circuit board.
• These test points enable technicians to analyze and troubleshoot system performance.
• However, diagnostics should only be performed by qualified service personnel using certified and calibrated testing equipment.

WOC has the largest stock of Mark V Spares and we can repair your faulty spares with a warranty. WORLD OF CONTROLS can also supply unused and rebuilt components backed by a warranty. Our team of experts is available round the clock to support your urgent needs related to critical spares, Contact us.

FREQUENTLY ASKED QUESTIONS

What is DS200FECBG1AAA?
It is a Field Exciter Control Board and is part of the GE Speedtronic Mark V gas turbine control system.

How does the Field Exciter Control Board protect against overvoltage?
The overvoltage protection controller integrated into the board stores high-voltage current during normal operation. It ensures that excessive voltage is prevented from damaging components and helps maintain system stability.

Can I perform software updates or adjustments on the Field Exciter Control Board?
Yes, software adjustments and configuration can be made using tools like the ST2000, GE Control System Toolbox, or LynxOS Drive Configurator, depending on the specific system setup.
