7014PC - Time Delay Relay

7014PC - Time Delay Relay 7014PC - Time Delay Relay

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

7014PC - Time Delay Relay is available in stock which ships the same day.

7014PC - Time Delay Relay comes in UNUSED as well as REBUILT condition.

To avail our best deals for 7014PC - Time Delay Relay, contact us and we will get back to you within 24 hours.

SPECIFICATIONS

Part No.: 7014PC
Manufacturer: TE Connectivity
Mounting Type: Panel Mount
Relay Type: Mechanical Relay
Function: On-Delay
Circuit: 4PDT (4 Form C)
Country of Manufacture: United States of America (USA)
Product Type: Time Delay Relay
Availability: In Stock
Subcategory: Relays
Category: Time Delay & Timing Relays
Series: Agastat

Functional Description

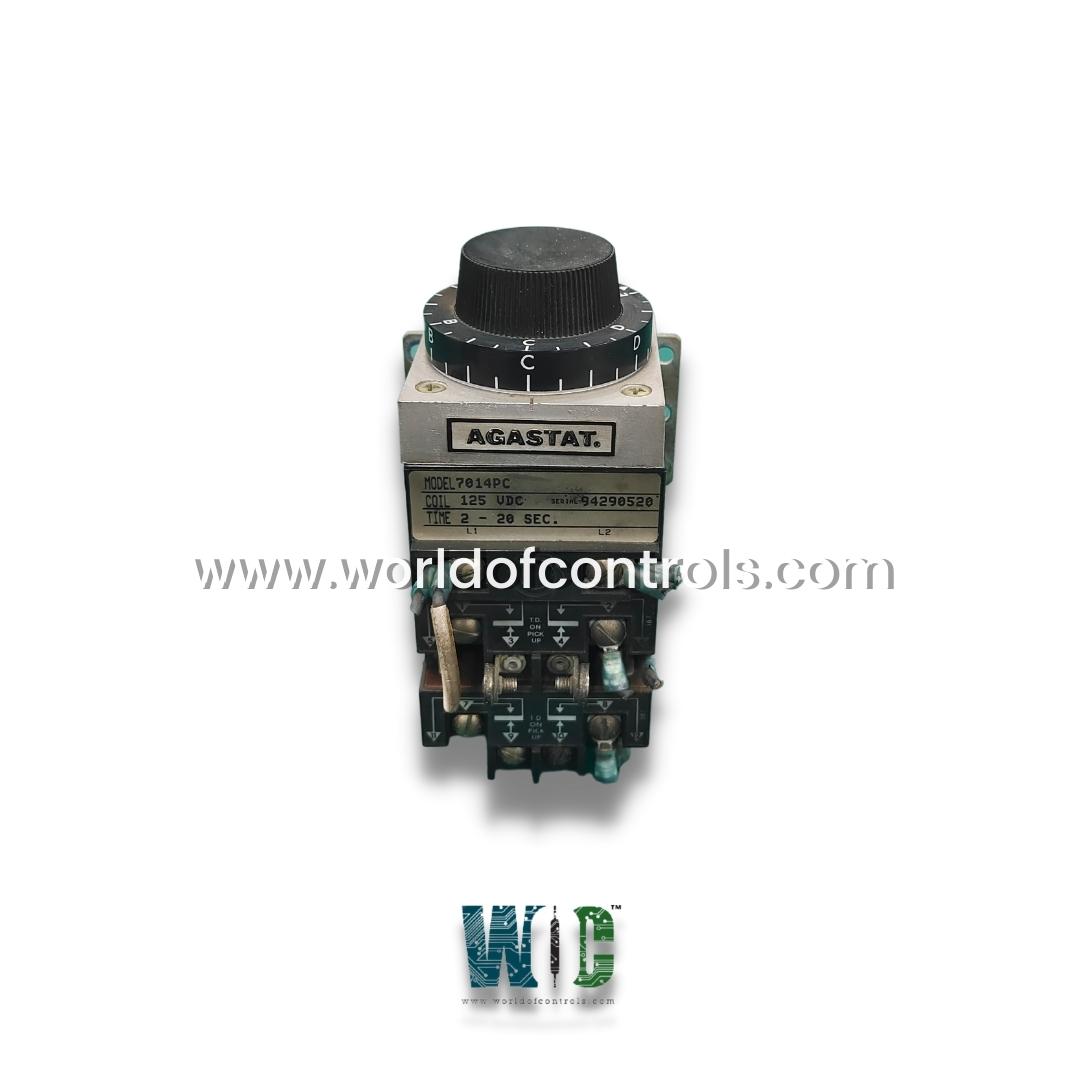

7014PC is a Time Delay Relay developed by TE Connectivity. This relay ensures accurate timing for delayed operations, helping to coordinate processes in machinery, automation systems, and various control circuits. It is built for durability and reliability, featuring a robust design and flexible functionality that meets the needs of demanding environments.

Features

  • Relay Type: Mechanical Relay
  • Function: On-Delay – This type of relay initiates its action after a predetermined delay following the application of voltage.
  • Contact Arrangement: 4 Form C, 4PDT (4 Pole Double Throw) - This configuration provides versatile switching capabilities for complex control systems.
  • Current Type: DC – The relay is designed to work with direct current systems.
  • Contact Current Rating: 10A at 240VAC, which allows the relay to handle medium current loads commonly used in industrial environments.
  • Supply Voltage: 125VDC, making it compatible with a wide range of industrial power systems.
  • Termination Style: Screw Terminals – These terminals ensure secure connections, facilitating easy installation and maintenance.
  • Timing Adjustment Method: Hand Dial – The delay time can be adjusted via a manual dial, providing easy customization of the time delay range.
  • Timing Initiate Method: Input Voltage - The delay is triggered by the application of input voltage, ensuring accurate timing based on system conditions.
  • Delay Time: The relay offers a delay time range of 2 seconds to 20 seconds, which is ideal for systems requiring precise control of time-sensitive operations.
  • Mounting Options: Panel Mount – This relay is designed for easy installation within control panels.
  • Mode of Operation: On-Delay – It remains inactive until the specified delay time elapses, at which point it triggers the connected circuit.
  • Repeatability:  10% – This ensures a high degree of precision in repeated operations, maintaining reliable performance over time.

Additional Features

  • Approvals: The Time Delay Relay is CE Approved, CSA Certified, FM Approved, and UL Listed, ensuring it meets international safety and quality standards for industrial use.
  • Dimensions: The approximate dimensions of the relay are 114.80 x 65.30 x 71.90 mm (4.523 x 2.572 x 2.832 in), making it compact enough for integration into various
  • control panels without taking up excessive space.

The WOC team is always available to help you with your gas turbine control system replacement parts requirements. For more information, please contact WOC.

Frequently Asked Questions

What is 7014PC?
It is a Time Delay Relay developed by TE Connectivity.

What type of relay is the Relay?
It is a mechanical relay designed to handle on-delay functions. It utilizes a 4 Form C (4PDT) contact arrangement and operates with direct current (DC) systems. This relay is commonly used for industrial automation applications requiring precise timing and switching.

What is the delay time range for the Relay?
Allows you to set a delay time range between 2 seconds to 20 seconds, giving you the flexibility to adjust timing based on your specific requirements.

What is the input voltage for the 714PC relay?
It operates on a 125VDC input voltage, making it suitable for systems that require this voltage level for proper functionality.

What is the contact rating of the relay?
Contact rating of 10A at 240VAC, allowing it to handle moderate electrical loads, making it suitable for controlling motors, lighting, and other system.
