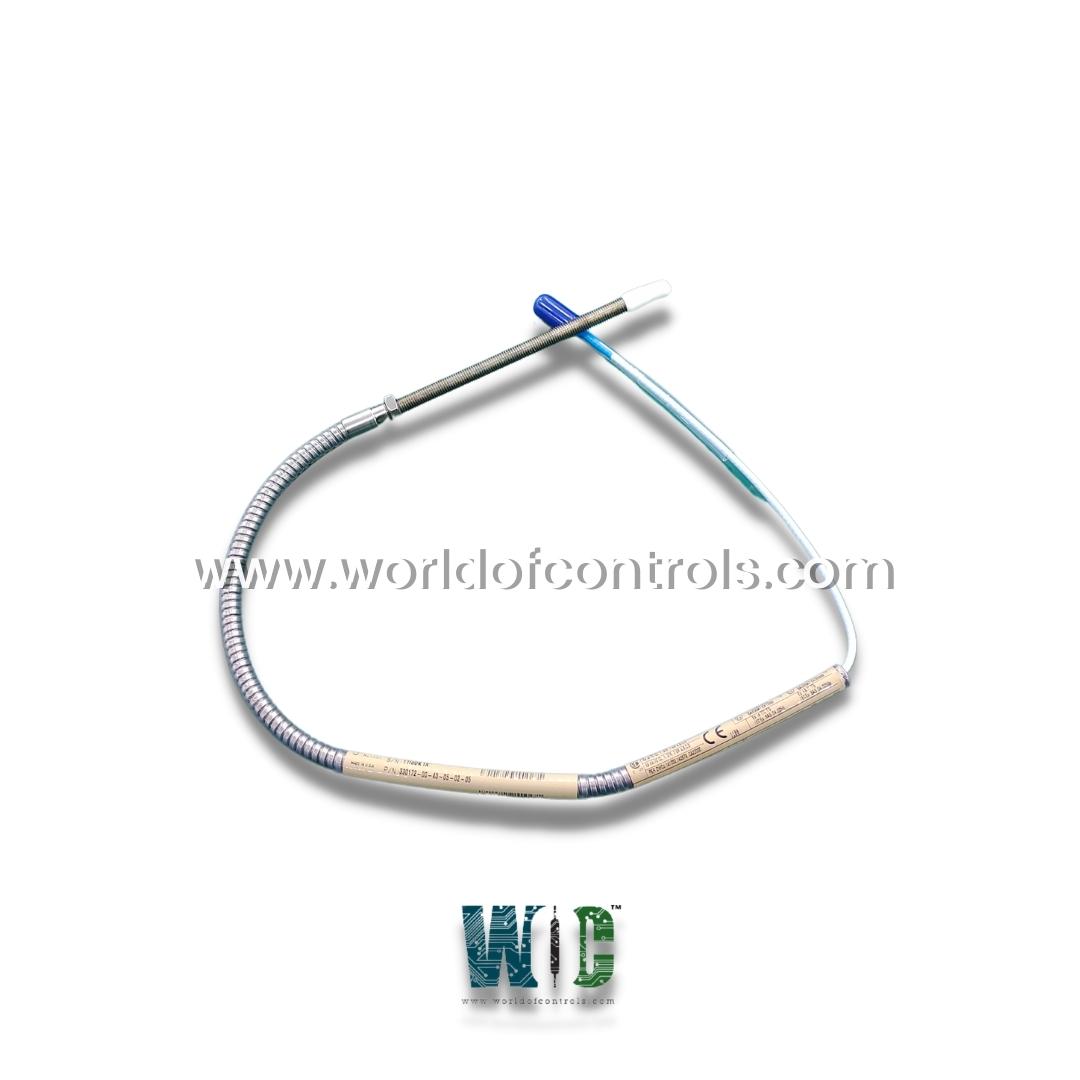

330172-00-40-05-02-05 - Proximity Probe

Specifications

Part Number: 330172-00-40-05-02-05
Manufacturer: Bently Nevada
Country of Manufacture: United States (USA)
Product Type: Proximity Probe
Series: Bentley Nevada 3300
Operating Temperature: -51 oC to +177 oC
Availability: In Stock

Functional Description

330172-00-40-05-02-05 is a Proximity Probe developed by Bently Nevada. It is designed to deliver reliable and accurate shaft vibration and position measurements. As part of the 3300 Series, this probe belongs to the 5 mm proximity sensor family, making it ideal for installations where space constraints prevent the use of standard 8 mm probes.

Product Attributes

• Tip Diameter: 5 mm
• Thread Type: 1/4-28 UNF
• Armor: With stainless steel armor for mechanical protection in harsh industrial environments
• Length Configuration: 0.0 in (customized mounting depth)
• Overall Case Length: 4 inches
• Total Cable Length: 0.5 meter (1.6 feet)
• Connector Type: Miniature coaxial ClickLoc connector
• Cable Type: Standard cable
• Agency Approvals: Certified for use in hazardous environments (CSA, ATEX, IECEx)

Features

• Compact 5 mm Tip: Ideal for tight installation areas or when probes must be mounted close together.
• Rugged Design: Armored with AISI 302/304 stainless steel, ensuring durability in high-vibration, high-temperature, or corrosive conditions.
• ClickLoc Connector: Ensures a secure and vibration-resistant connection for reliable signal transmission.
• Fully Compatible: Designed for use with 3300 XL Proximitor Sensors and extension cables, offering full compatibility with the 3300 series system.
• Backwards Compatible: Interchangeable with previous-generation Bently Nevada 3300 5 mm components in both physical and electrical interfaces.

Certifications & Compliance

• CSA (Canada Standards Association)
• ATEX (EU Directive for Explosive Atmospheres)
• IECEx (International Certification for Explosive Atmospheres)

World of Controls is available 24/7 to assist you with Bently Nevada needs. Contact us.

Frequently Asked Questions

What is Bently Nevada 330172-00-40-05-02-05?
It is a Proximity Probe developed by Bently Nevada under 3300 series.

What is the purpose of the armored design?
The AISI 302/304 stainless steel armor protects the cable from mechanical damage, abrasion, and harsh environmental conditions, making it ideal for use in industrial and hazardous environments.

Can this probe be used in hazardous areas?
Yes, it holds multiple certifications, including CSA, ATEX, and IECEx. These approvals certify its safe use in explosive or hazardous industrial settings.
