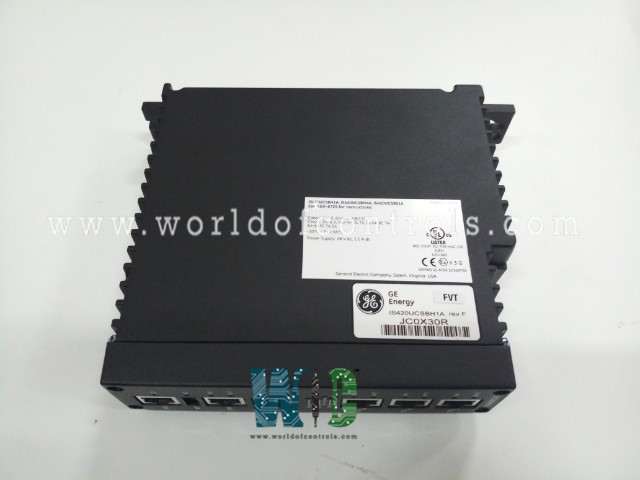

IS420UCSBH1A - UCSB Controller Module

Specifications

Part No.: IS420UCSBH1A
Manufacturer: General Electric
Country of Manufacture: United States(USA)
Product Type: UCSB Controller Module
Series: Mark VIe

IS420UCSBH1A is a UCSB Controller Module developed by GE. UCSB controllers are self-contained computers that execute application-specific control system logic. The UCSB controller does not host any application I/O, unlike traditional controllers that do. Furthermore, all I/O networks are connected to each controller, providing it with all input data. If a controller is powered down for maintenance or repair, the hardware and software architecture ensures that no single point of application input is lost.

Operation

• The controller is pre-loaded with application-specific software. It is capable of running rungs or blocks. Minor changes to the control software can be made online without restarting the system.
• The IEEE 1588 protocol is used to synchronize the clocks of the I/O packs and controllers to within 100 microseconds via the R, S, and T IONets. External data is transferred to and from the controller's control system database via the R, S, and T IONets. Process inputs and outputs to I/O modules are included.
• This also includes the following in a dual system:
  • The designated controller's internal state values and initialization information
  • The status and synchronization information from both controllers
• This also includes the following in a Triple Modular Redundant (TMR) system:
  • Internal state values for voting and status, as well as synchronization information from all three controllers
  • Data from the designated controller for initialization

IS420UCSBH1A Advantages

The following benefits are provided by UCSB controllers:

• Single module
• Built-in power supply
• No need for jumper settings
• No battery
• No fan
• Smaller panel footprint
• Flash memory can be easily updated

The UCSB controller is installed in a panel and communicates with I/O packs via on-board I/O network (IONet) interfaces. IONet is a private special-purpose Ethernet that supports only Mark controls I/O modules and controllers.

Characteristics

• Microprocessor: : 600 MHz Intel EP80579
• Memory: 256 MB DDR2 SDRAM with error-correcting code (ECC), Flash-backed SRAM, NAND flash size is 2 gigabytes
• Operating System: QNX Neutrino
• Weight: 2.4 lbs

Mounting and Installation

• The UCSB controller is housed in a single module that attaches to the panel sheet metal directly.
• The UCSB controller should be mounted to the panel unobstructed vertical air flow through the fins.

WOC's industrial automation hardware offering includes the UCSB Controller Module. Experts from the World of Controls are always available to assist you with your GE Mark VIe requirements. For further information, please contact us.



Frequently Asked Questions



What is IS420UCSBH1A?
IS420UCSBH1A is a UCSB Controller Module developed by GE

How much does the component weigh?
The component weighs around 2.4 lbs

What is the best way to obtain this Controller Module?
Mark VIe boards, as well as other turbine control parts, are available from WOC. Contact WOC for more details.
