IS200TSVCH2A - Terminal Board Servor

SPECIFICATIONS

Part No.: IS200TSVCH2A
Manufacturer: General Electric
Product Type: Terminal Board Servor
Series: Mark VI

The IS200TSVCH2A is a turbine-specific Terminal Board Servor under the speedtronic Mark VI series. This is only one of several types of turbine-specific I/O boards we have in stock, so make sure you get the right one for your needs. This board is a two-channel barrier-type servo terminal board, and it is one of numerous turbine-specific terminal boards available for the system. It's called an I/O module, and it's utilized to make a direct connection between the Speedtronic system and field devices. These boards allow users to simplify diagnosis, monitoring, and maintenance of linked field equipment and their connections by reducing or eliminating extraneous instrumentation and connection points. Two coil outputs and two pulse-rate inputs are included.

• The IS200TSVCH2A is about 2.25 pounds in weight. It is meant to provide a direct interface for actuators and external sensors as a servo-valve terminal board.
• Using boards like this one, you may simplify or eliminate a lot of the original instrumentation that was previously used between the system and these external components. This decreases the likelihood of single-point failures while increasing system reliability. It also lowers the demand for and cost of long-term maintenance.
• The PCB has two barrier-type terminal blocks that can be removed. These are on one long side of the board. The board has two pulse rate inputs for heavy-duty, aviation gas, and steam applications. This board is meant to be used with a PSVOH1B battery pack.

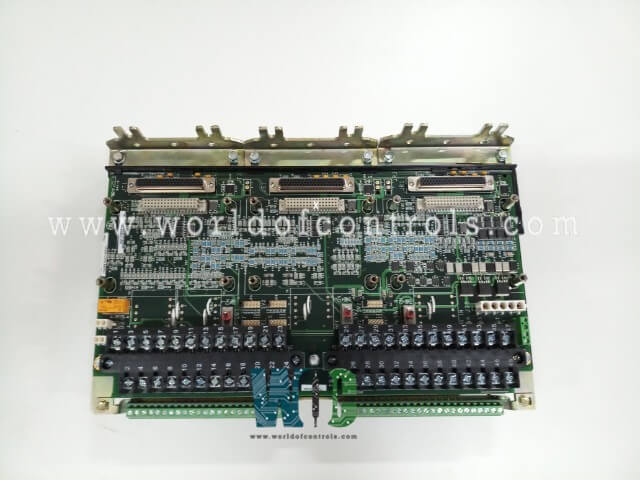

• Four transformers, three d-shell connectors, and multiple vertical plug connectors are among the other board components on the IS200TSVCH2A. The board features a number of jumper switches, each of which can be adjusted to one of the numerous options.
• Components are positioned on both sides of the board with this style. Components are labeled with reference numbers to make identification easy. The board has two barrier-type terminal blocks that can be removed. These are on one long side of the board.
• The board has two pulse rate inputs for heavy-duty, aviation gas, and steam applications. This board is meant to be used with a PSVOH1B battery pack. Four transformers, three d-shell connectors, and multiple vertical plug connectors are among the other board components on the board.
• The board features a number of jumper switches, each of which can be adjusted to one of the numerous options. Components are positioned on both sides of the board with this style. Components are labeled with reference numbers to make identification easy.

The most extensive assortment of GE Speedtronic Mark VI control replacement components can be found at World of Controls. Our experts are available to assist you with your Mark VI requirements at any time. Please contact WOC if you require any additional information.



Frequently Asked Questions



What is IS200TSVCH2A?
The IS200TSVCH2A is a turbine-specific Terminal Board Servor under Mark VI series

How much does IS200TSVCH2A weigh?
The IS200TSVCH2A is 2.25 pounds in weight.

How to Obtain IS200TSVCH2A?
WOC provides IS200TSVCH2A as well as other turbine control products. Contact World of Controls.
