IC3600SPRB1 - GE Pulse Circuit Board IC 3600

SPECIFICATIONS

Part No.: IC3600SPRB1
Manufacturer: General Electric
Product Type: Pulse Circuit Board
Series: Mark I and II

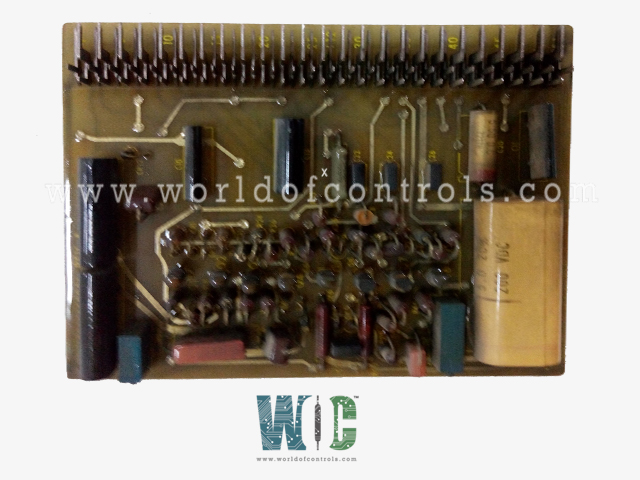

IC3600SPRB1 is a GE Pulse Circuit Board under Mark I and II series. Three red capacitors, three square capacitors, and an orange capacitor make up the board. These capacitors generate various sized electrical fields in order to store extra energy for the circuit board. Seven small black transistors, two circular transistors, and one silver circular transistor make up the IC3600SPRB1. Transistors are used to enhance and change electrical current and electronic signals.

• The board includes four Potentiometers, also known as Variable Resistors, that allow the employee to control the flow of energy with the turn of a little knob.
  The module additionally features thirty stripped resistors that control energy flow by limiting it to a specific level. The card contains 10 diodes that further restrict energy flow by only allowing it to flow in one direction via them.
• The board contains fifty-two vertical and fifty-two horizontal metal male terminal pins, allowing it to be securely installed in the current system. The IC3600SPRB1 also includes a faceplate that uses the two screw holes on either end to lock the circuit board in place. A red port on the faceplate is connected to the circuit board by a white cable.

World of Controls has the most comprehensive selection of Turbine control components. Our experts are here to assist you with your GE IC3600SFUA1E need. Contact us right away if you have any questions regarding the IC3600SPRB1 or any other WOC product.



Frequently Asked Questions



What is IC3600SPRB1?
IC3600SPRB1 is a GE Pulse Circuit Board under Mark I and II series.

How to Obtain IC3600SPRB1?
World of Controls provides IC3600SPRB1 as well as other turbine control products. Contact WOC.
