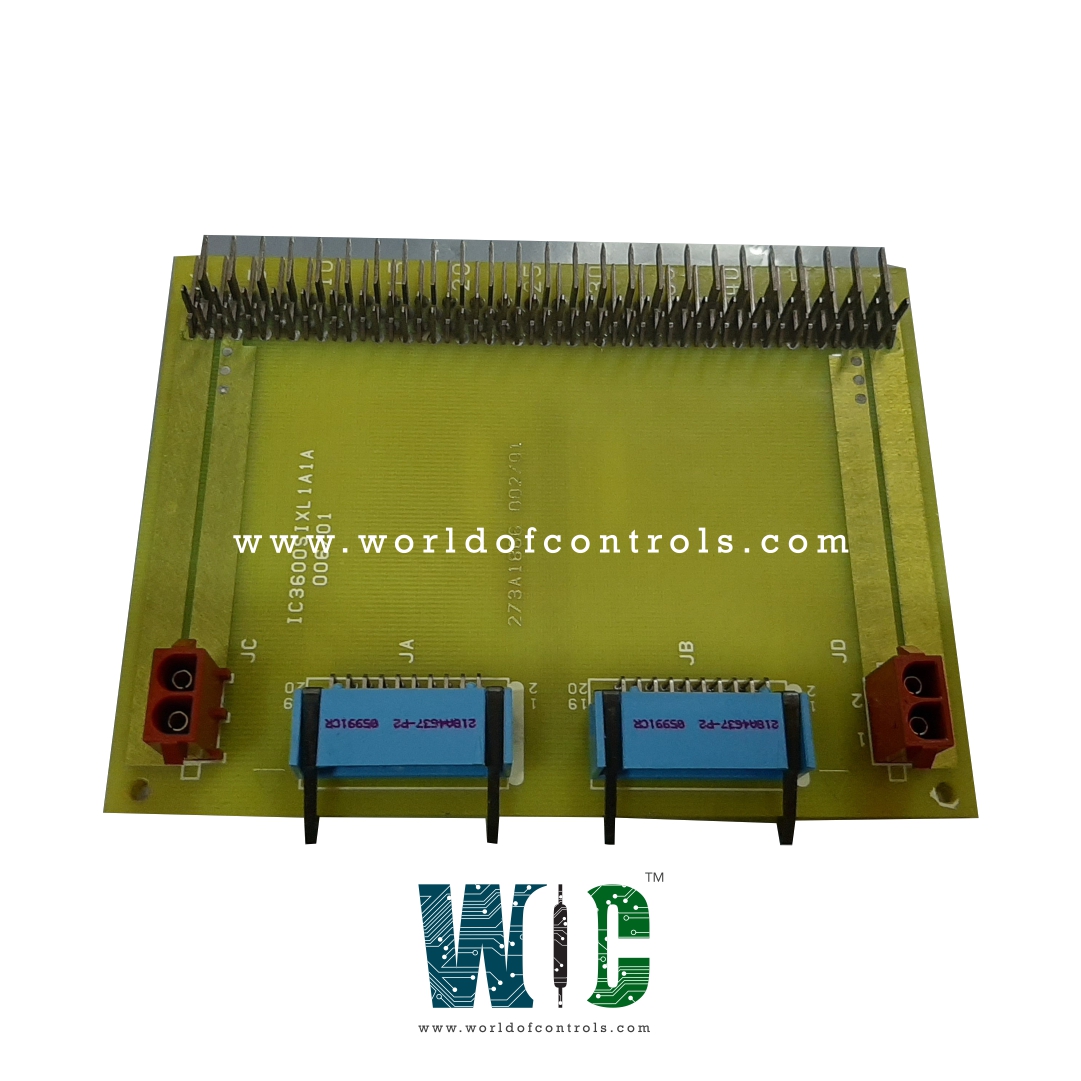

IC3600SIXK1A1A - Speedtronic Power Sensor Circuit Board

SPECIFICATIONS

Part No.: IC3600SIXK1A1A
Manufacturer: General Electric
Product Type: power sensor card
Series: Mark IV

IC3600SIXK1A1A is a power sensor card, used in the Speedtronic Mark IV control panel 125V ground detection circuit. The bus is fused in the power distribution module, [PDM], and fed to relay module #1,[ RELAY1 ].GE Speedtronic devices have enhanced the reliability of gas and steam industrial systems since the 1960s. The Mark IV, on the other hand, had a revolutionary architecture that incorporated three separate controllers, each with its own CPU. This form of design reduces downtime and increases efficiency since it can continue to function even if one of the controllers fails. The Mark IV can continue active as long as two of its controllers can 'vote' on which data to use, thanks to its two-out-of-three voting system. Even if one of the three controllers fails, the system continues to function.

• The SIXK card reduces the 125VDC and 28VDC buses to 8V which is monitored in [C] for the proper level and possible grounds.
• A SIXK card splits the bus into +62.5VDC and -62.5VDC segments with respect to the ground, and a voltage divider reduces the voltage to 5.09VDC.
• Both channels are fed to input amplifiers on the HAFA card in the Communicator, [C], and then connected to the HAIC card for the analog to digital conversion.

WOC has the largest stock of Speedtronic Mark IV Spares and we can repair your faulty spares with a warranty. WORLD OF CONTROLS can also supply UNUSED and REBUILT components backed up with a warranty. Our team of experts are available round the clock to support your urgent needs related to critical spares, contact us.



Frequently Asked Questions



What is IC3600SIXK1A1A?

IC3600SIXK1A1A is a power sensor card, used in the SPEEDTRONIC Mark IV control panel 125V ground detection circuit.



How to obtain IC3600SIXK1A1A?

WORLD OF CONTROLS supply UNUSED and REBUILT components backed up with a warranty. Contact WOC to get IC3600SIXK1A1A.
