IC3600LRDJ1 - Speedtronic Gas Turbine Relay Driver Circuit Board

SPECIFICATIONS

Part Number: IC3600LRDJ1
Manufacturer: General Electric
Series: Mark I & II
Function: Circuit Board

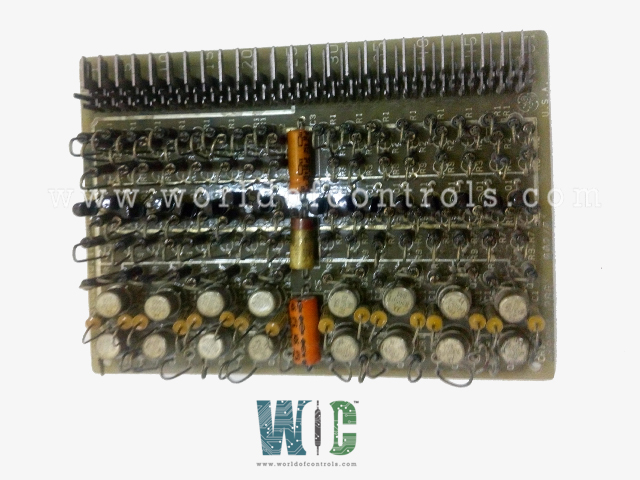

GE FANUC Mark I & II IC3600LRDJ1 is a Relay Driver Board from the Mark I & II Series of gas turbine control systems. The IC3600LRDJ1 is a compact board with a lot of components. It's important to observe how these components are labeled. The board features thirty-two transistors in three lines, however, one line of sixteen is labeled "Q1," while the remaining two lines of eight transistors are both labeled "Q2. There are six lines of metal film resistors on the board, but they are all labeled R1, R2, R3, R5, R7, and R9.

• There are no R4, R6, or R8 on the board. Similarly, the board has a C1-marked line of sixteen polyester film capacitors. Individual capacitors C3, C4, and C5 are all present. C2 isn't visible on the board.

• WOC has the largest stock of Speedtronic Mark I & II control spares and we can repair your faulty IC3600LRDJ1 with a warranty of 12 months.

• WORLD OF CONTROLS can also supply UNUSED and REBUILT IC3600LRDJ1 backed up with a warranty of 24 months. Our team of experts is available round the clock to support your IC3600LRDJ1 needs.

• Our sales team at WOC is happy to assist you with any of your automation requirements. Please contact our staff by phone or email for pricing and availability on any parts and repairs.



FREQUENTLY ASKED QUESTIONS

What is the purpose of a relay driver module?

External relays are controlled by an internal or external power source.

What is the purpose of an 8-channel relay?

The eight-channel relay module has eight 5V relays as well as the accompanying switching and isolating components, allowing for simple interfacing with a microcontroller or sensor with the fewest possible components and connections.

How many transistors are in this Board?

Thirty-two transistors are mounted on this board.

How long does it take for a WOC IC3600LRDJ1 to Ship?

WOC maintains a large inventory and can fulfill many orders on the same day. Please contact us for additional information.
