IC3600LRDC1 - Speedtronic Gas Turbine Relay Driver Card

SPECIFICATIONS

Part Number: IC3600LRDC1
Series: Mark I & II
Function: Driver Board
Manufacturer: GE FANUC

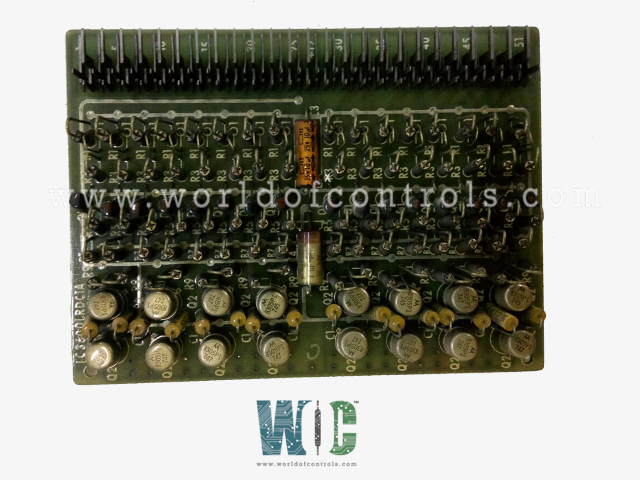

IC3600LRDC1 is a Relay Driver Board and is part of the GE Fanuc Mark I & II gas turbine control system. Two aluminum electrolytic capacitors make up the IC3600LRDC1. Sixteen polyester vinyl capacitors are vertically positioned on the board. There are 32 transistors on the board, with two lines of eight transistors each labeled (Q2) and one line of sixteen transistors marked (Q3) (Q1.) There are five lines of sixteen resistors on the board. Carbon composite material is used to make the resistors on this board. Each of these lines has been labeled as if it were a single component. R1, R3, R5, R7, and R9 are all marked on the board. There are sixteen diodes on the PCB. Diodes are numbered, but they don't have any other identifier.

• WOC has the largest stock of Speedtronic Mark I & II control spares and we can repair your faulty IC3600LRDC1 with a warranty of 12 months.

• WORLD OF CONTROLS can also supply UNUSED and REBUILT IC3600LRDC1 backed up with a warranty of 24 months. Our team of experts is available round the clock to support your IC3600LRDC1 needs.

• Our sales team at WOC is happy to assist you with any of your automation requirements. Please contact our staff by phone or email for pricing and availability on any parts and repair



FREQUENTLY ASKED QUESTIONS

How many Transistors are on this board?

There are 32 transistors in this driver board.

Does the IC3600LRDC1 have a Warranty?

WOC can also supply UNUSED and REBUILT IC3600LRDC1 backed up with a warranty of 24 months.

How to Check Price and Availability For IC3600LRDC1?

Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.
