DS3800NPPB - POWER SUPPLY CIRCUIT BOARD

SPECIFICATIONS

Part Number: DS3800NPPB
Manufacturer: General Electric
Series: Mark IV
Function: Power Supply Circuit Board

DS3800NPPB is a Power supply Circuit Board developed by GE for the Mark IV gas turbine control system. The Mark IV is a series in the Mark series that is used to automate gas and steam turbines and protect them from damage.

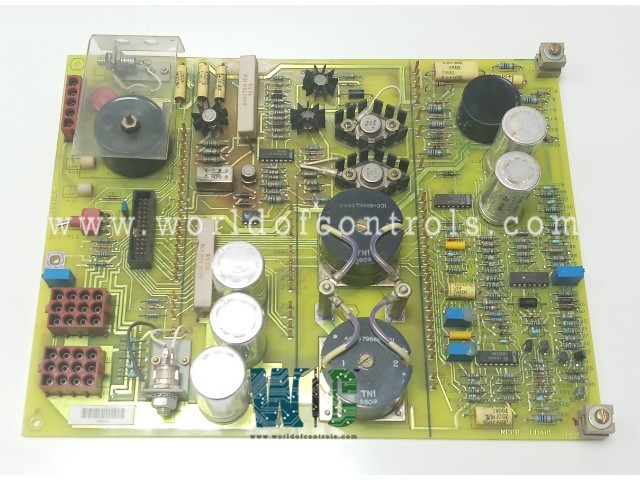

• The circuit is possess three large inductors or coils. Two inductors are paired together and wired together on the board’s lower half. The other two inductors can be found on either end of the GE board’s top half.
• Three capacitors are arranged in a vertical row near the bottom of the board. On the opposite side of the circuit board, there are two brown capacitors. This GE board has one large metal diode near the lower-left corner. It has five medium-sized yellow capacitors. Five of these capacitors are located in the upper left corner. The remaining two of these capacitors are located in the upper right corner.
• The circuit board has one long grey resistor near the center of the top. The resistor is identified by the part number IRC 8845. It is connected to three-terminal blocks. The color of these terminal blocks is red. Two of the blocks have twelve terminals each, while the other has five terminals. The board is surrounded by a slew of very small diodes and capacitors.

WOC has the largest stock of Speedtronic Mark IV Spares and we can repair your faulty DS3800NPPB with a warranty. WORLD OF CONTROLS can also supply UNUSED and REBUILT components backed up with a warranty. Our team of experts is available round the clock to support your critical spare needs, contact us.



FREQUENTLY ASKED QUESTIONS



What is DS3800NPPB?
DS3800NPPB is a Power supply Circuit Board developed by GE.

How to Obtain DS3800NPPB?
World of Controls provides DS3800NPPB as well as other turbine control products. Contact WOC.
