DS3800HRMB - BATTERY ROM

SPECIFICATIONS

Part No.: DS3800HRMB
Manufacturer: General Electric
Product Type: Battery ROM Board
Series: Mark IV

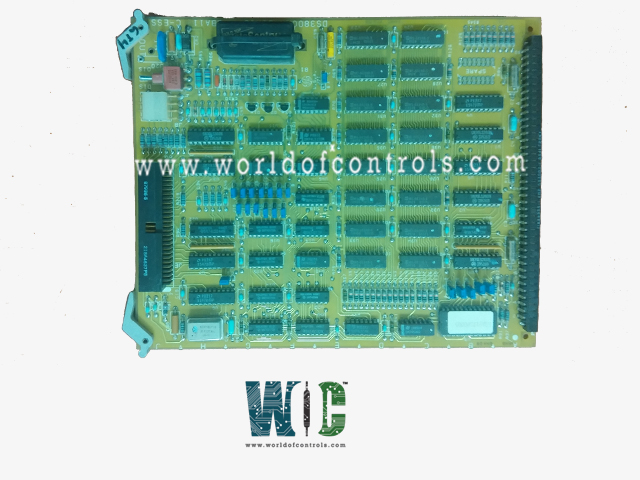

DS3800HRMB is a Battery ROM Card developed by General Electric under the mark IV series. The board is built to be installed quickly in the drive. DS3800HRMB has retention levers on one end and a modular connector on the other end. A 40-pin connection embedded board is featured on the module and only one reset toggle switch is integrated.

• On the PCB, there are is an analog-to-digital converter, seven jumpers, and one 20-pin connector. Analog signals are converted to digital signals by this converter. Throughout, the signal processing is done in digital format.
• The reset toggle switch on the board can be used to correct problems if the board appears to have intermittent processing difficulties or is suddenly experiencing inexplicable irregular processing issues.
• The operator can start the reset function by moving the toggle switch while the drive is still operating and receiving power. Because the current in the drive can produce a major shock or electric burn, the toggle switch can only be used by the operator. While operating the switch, the servicer is taught to avoid contacting other components in the drive. During an emergency shutdown, turn off the drive's power completely. It's conveniently situated near the drive for emergency use.

The most extensive range of GE Speedtronic Mark IV control components can be found at World of Controls. Our experts are available to assist you with your Mark IV requirements at any time. If you require any additional information, please contact WOC as soon as possible.



Frequently Asked Questions



What is DS3800HRMB?
DS3800HRMB is a Battery ROM Card developed by General Electric under the mark IV series.

How to Obtain DS3800HRMB?
World of Controls provides DS3800HRMB as well as other turbine control products. Contact WOC.
