DS3800HMPF1E - DS3800HMPF Micro Processor Board General Electric

SPECIFICATIONS

Part No.: DS3800HMPF1E
Manufacturer: General Electric
Product Type: Microprocessor Board
Series: Mark IV

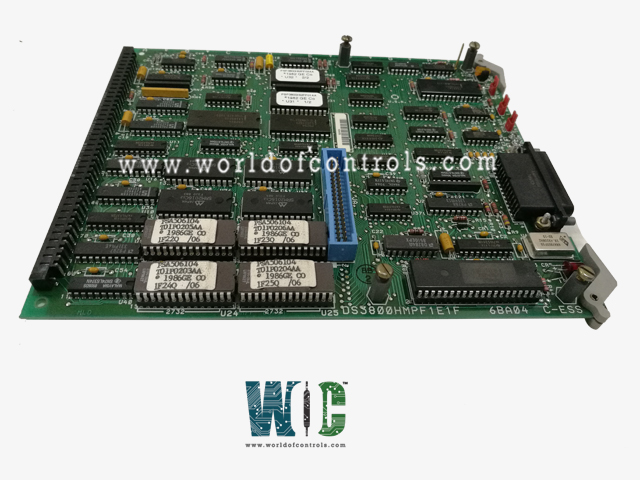

DS3800HMPF1E is a Microprocessor board developed by General Electric under Mark IV series. This board functions as a controller module for the Speedtronic system.
The Mark IV was the first of these systems to use three controller modules to vote on all data before it was used for outputs.

• This is an HMP controller card. Other controller examples include HRMA, HPRA, HXPC, HAIA, NTCA, NVCA, and HSAA boards. These function with communicator modules in a C, RST format, with the R, S, and T boards being independent of one another but identical in terms of inputs, outputs, and power supply.
• The board is designed to produce its independent assessment of turbine status in this setup, which is subsequently provided to the controller. This information is voted on, utilizing data from all three boards, with each crucial action often requiring two out of three boards to "agree."
• The Intel 8086 CPU is used on the PCB. This is a third-generation semiconductor with a 16-bit external data link that provides hierarchical bus organization and distributed system functionalities.
• Please refer to and review manuals, user guides, and datasheets from General Electric or contact us for a more extensive look at the circuit board or additional information regarding the Mark IV system.

World of Controls has the most comprehensive selection of GE Speedtronic Mark IV control components. At any time, our experts are accessible to help you with your Mark IV obligations. Please contact WOC as soon as possible if you require any extra information.



Frequently Asked Questions



What is DS3800HMPF1E?
The DS3800HMPF1E is a microprocessor board developed by General Electric under the Mark IV series.

Which is the microprocessor chip used on the DS3800HMPF1E?
The microprocessor chip used is Intel 8086 CPU.

What is the function of the DS3800HMPF1E?
The board functions as a controller card for the system.

How to Obtain DS3800HMPF1E?
World of Controls provides DS3800HMPF1E as well as other turbine control products. Contact WOC.
