DS3800DPSS1B1B - CARD MARK IV

SPECIFICATIONS

Part No.: DS3800DPSS1B1B
Manufacturer: General Electric
Product Type: PCB
Series: Mark IV

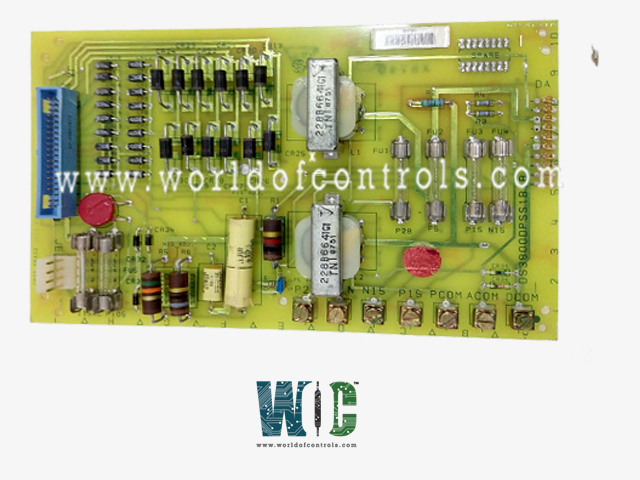

DS3800DPSS1B1B is a PCB component under the Mark IV series developed by GE. Six fuses and a 34-pin connector are included in the GE Turbine Control Board DS3800DPSS1B1B. On the Board, there is 1 jumper, 7 connectors, and many capacitors. There is an ID on the jumper on the board named J1, and it allows the installer to personalize the processing of the GE Turbine Control Board. Refer to the printed literature that came with the board when you acquired it from the factory to learn how the jumper can configure the board.

• A description of the jumper is included in the pamphlet (J1). The jumper has two supported positions, each of which configures the board differently. The jumper on the board is set to the default position when it leaves the manufacturer. This is usually the most popular configuration choice and is defined by the factory. The jumper covers two of the three pins that make up the jumper. The jumper covers pins 1 and 2 or pins 2 and 3.
• The board establishes contact with the two pins and processes the generated signal to configure the board. Adding components to the terminals is another method to customize the board. This alters the board's processing.

The most extensive inventory of GE Speedtronic Mark IV control components may be found at World of Controls. Our experts are ready to assist you with your Mark IV requirements. Please contact WOC right away if you require any additional information.

Frequently Asked Questions



What is DS3800DPSS1B1B?
DS3800DPSS1B1B is a PCB component under the Mark IV series developed by GE

How to Obtain DS3800DPSS1B1B?
World of Controls provides DS3800DPSS1B1B as well as other turbine control products. Contact WOC.
