DS3800DGRC1C1D - GE MARK IV GENERATOR REGULATOR BOARD

SPECIFICATIONS

Part Number: DS3800DGRC1C1D
Manufacturer: General Electric
Series: Mark IV
Product Type: Regulator Board
Region of Manufacture: United States

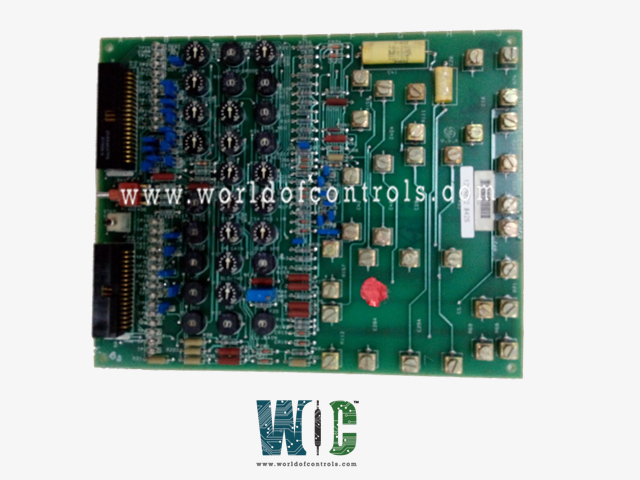

The DS3800DGRC1C1D is a circuit board for a generator regulator. General Electric designed the regulator circuit board for the Speedtronic Mark IV series of turbine controllers. On one half of the board, the DS3800DGRC1C1D includes 34 square gold capacitors. Two yellow battery-shaped capacitors are present, one of which is larger and the other smaller. There are two black connector ports on the circuit board. 87936-3 218A4637P4 is the label for the smaller of these connector ports.

• One black and one red switch are located on the regulator circuit board. Blue jumper pins can be found in abundance. The jumpers allow the operator to change the board's functionalities. There are a lot of little colorful striped resistors and diodes on the board. Several larger solid grey and dark red resistors are also available. The letters A through J are labeled on one of the longer corners of the circuit board.
• This board is a voltage regulator circuit board. When an operator has to regulate the voltage levels in a system, a voltage regulator is frequently utilized. When a constant and reliable voltage is required for operation, a voltage regulator is preferred. When the input voltage or load circumstances change, the voltage regulator creates a fixed output voltage that remains constant. The voltage regulator also serves as a buffer, preventing damage to the components.
  For user safety, the DS3800DGRC1C1D will be packed in a static bag that will discharge any static energy prior to handling. General Electric should handle all troubleshooting and technical support.
• WOC has the largest stock of Speedtronic Mark IV control spares and we can repair your faulty parts with a warranty.
• WORLD OF CONTROLS also supply UNUSED and REBUILT DS3800DGRC1C1D backed up with a warranty. Our sales team at WOC is happy to assist you with any of your automation requirements. Please contact our staff by phone or email for pricing and availability on any parts and repairs.



FREQUENTLY ASKED QUESTIONS



What is DS3800DGRC1C1D?

The DS3800DGRC1C1D is a generator regulator circuit board that comes under the GE Mark IV series.



How to obtain DS3800DGRC1C1D?

WORLD OF CONTROLS can supply UNUSED and REBUILT DS3800DGRC1C1D backed up with a warranty.
