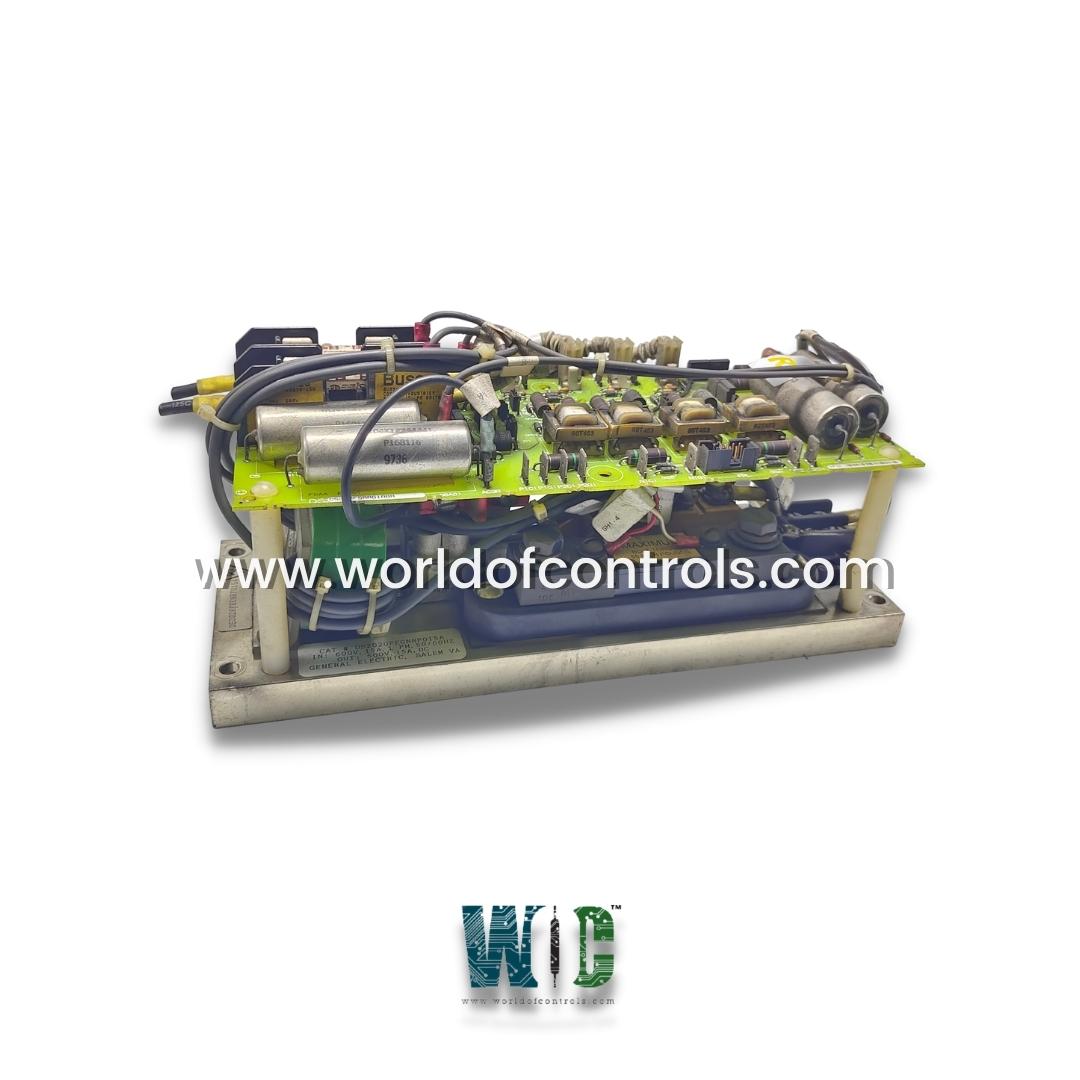

DS2020FECNRP015A - Field Exciter Board

SPECIFICATIONS

Part Number: DS2020FECNRP015A
Manufacturer: General Electric
Product Type: Field Exciter Board
Series: Mark V
Availability: In Stock
Country of Origin: United States (USA)

DS2020FECNRP015A is a 15A Field Exciter Board developed by GE. The board has seven jumpers and two terminal blocks with three terminals each. JP1 through JP7 are the jumpers' numbers. There are also several prong-type connectors on the board. The board is mounted on standoffs on another drive component. The signal wires that connect to the board are generated by the component to which they are connected.

DS2020FECNRP015A Features

• When replacing the board or troubleshooting the board, the two fuses on the board must be considered. It is also best practice to take proper precautions when maintaining the board. The fuses on the board are designed to blow only when a specific voltage is applied to the board. Less voltage has no effect on the components.
• However, if more energy is introduced, the components may be damaged, and the fuses may blow, causing the board to shut down. This safeguards the components against damage. When replacing a fuse, it must be the same rating as described in the factory's written material. It is best to keep a supply of fuses on hand so that the drive is only down for a short time while the fuse is replaced if necessary.
• The drive receives power from several sources, and if you disconnect one, you may not have removed all power from the drive.

WOC supports a large number of GE Speedtronic Mark V Spare parts. Contact us if you require additional information or have a question.

FREQUENTLY ASKED QUESTIONS



What is DS2020FECNRP015A?
DS2020FECNRP015A is a Field Exciter Board developed by GE under the Drive Control System.

What is the current rating of the component?
The component is a 15 A Exciter Board.

How to obtain DS2020FECNRP015A?
Contact WOC. We have a large inventory of GE Speedtronic control system parts.
