DS2020DACAG1 - GE MARK V TRANSFORMER ASSEMBLY

DS2020DACAG1 - GE MARK V TRANSFORMER ASSEMBLY DS2020DACAG1 - GE MARK V TRANSFORMER ASSEMBLY

World Of Controls understands the criticality of your requirement and works towards reducing the lead time as much as possible.

DS2020DACAG1 - GE MARK V TRANSFORMER ASSEMBLY is available in stock which ships the same day.

DS2020DACAG1 - GE MARK V TRANSFORMER ASSEMBLY comes in UNUSED as well as REBUILT condition.

To avail our best deals for DS2020DACAG1 - GE MARK V TRANSFORMER ASSEMBLY, contact us and we will get back to you within 24 hours.

Request For Quote
Contact Us

Featured Product

SPECIFICATIONS

Part Number: DS2020DACAG1
Manufacturer: General Electric
Series: Mark V
Function: AC/DC Power Conversion

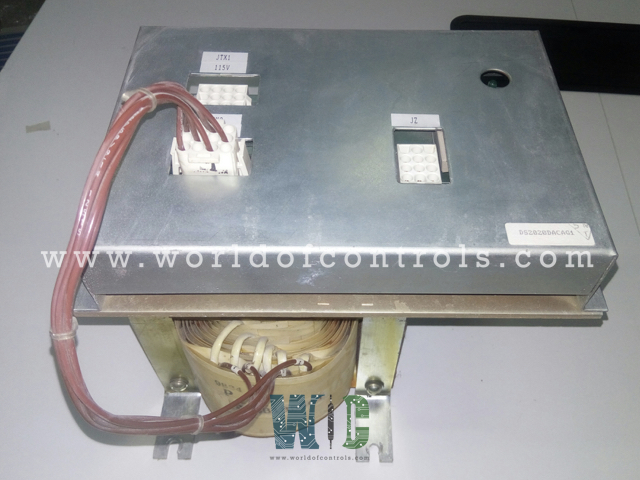

General Electric Speedtronic Mark V DS2020DACAG1 is an AC/DC Power Conversion Module and is part of the drive control hardware. The DS2020DACAG1 module comes with four mounting brackets (two on each side) that can be used to secure it in place. This module should be vertically floor-mounted within the cabinet to which it is assigned. Bolts can be used to anchor the DS2020DACAG1 to a surface. On the module, there is a collection of six wires that are joined with zip ties. The wires will not tangle because of the zip ties. These wires connect to a power supply on the module's bottom. Two additional 115V connectors are labeled J2 and JTX1 on the module's top metallic plate.

  • A blue electro capacitor is located on the underside of the top plate. When this board is powered on, a green LED indicator light will glow in the top left corner of the module. A transformer assembly is also known as the DS2020DACAG1. The VAC input power is converted to VDC output power using this module.
  • This module should only be used at temperatures ranging from -30 to +65 degrees Celsius with a non-condensing humidity of 5 to 95 percent. This module should be protected in a chassis or an electrical cabinet because it is not designed for external use.
  • WORLD OF CONTROLS can also supply UNUSED and REBUILT DS2020DACAG1 backed up with a warranty of 24 months. Our team of experts is available round the clock to support your DS2020DACAG1 needs.
  • Our sales team at WOC is happy to assist you with any of your automation requirements. Please contact our staff by phone or email for pricing and availability on any parts and repairs.

FREQUENTLY ASKED QUESTIONS

What is the function of DS2020DACAG1?

DS2020DACAG1 is used for power conversion. When the Mark V Control loses all control power, the DS2020DACAG1 provides additional local energy storage to increase the ride-through time.

What is the number of mounting holes on the DS2020DACAG1?

The base of the DS2020DACAG1 features four mounting holes.

What is the DS2020DACAG1 output voltage?

When DS2020DACAG1 is operated at a load of 1 to 9.5 amps over the full range of input voltage, the output voltage is 90-145 VDC.
