DS200SHCBG1A - Shunt Connector Board

SPECIFICATIONS

Part Number: DS200SHCBG1A
Manufacturer: General Electric
Series: Mark V
Product Type: Shunt Connector Card
Availability: In Stock
Country of Origin: USA

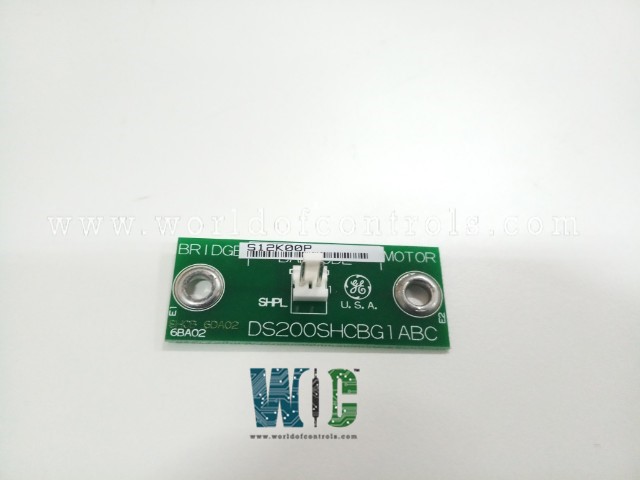

DS200SHCBG1A is a Shunt Connector Board manufactured by General Electric as part of the Mark V Series used in gas turbine control management systems. E1 is the ID assigned to the bridge terminal. E2 is the ID assigned to the motor terminal. You must use two hands to unplug the 2-pin connector. Hold the board steady with one hand while grasping the 2-pin cable from the connector end with the other. Remove the cable from the connector.

DS200SHCBG1A Features

• It has two terminals and a 2-pin connector for connecting the bridge and the motor signal. The 3 wires from the old board must be unplugged and then reconnected to the new board when you replace the GE Shunt Connector Board. E1 is the ID assigned to the bridge terminal. E2 is the ID assigned to the motor terminal. You must use two hands to unplug the 2-pin connector. Hold the board steady with one hand while grasping the 2-pin cable from the connector end with the other. Remove the cable from the connector.
• The ideal method is to make a tag for each cable and attach it by wrapping it around it or by using a sticker that may be applied to the cable. Use one hand to stop the board from sliding while using the other to grab the cable connector and pull it out of the board connector to disconnect the 2-pin cable.



DS200SHCBG1A Board replacement Precautions

• Examine the general area where the drive is installed and take note of any moisture or water on the floor. Remove any standing water or moisture from the floor and allow it to dry completely. If you find oil, grease, or other liquids on the floor, clean it with detergent and wait until the floor is dry before replacing it.
• Remove any dirt and debris from the area as well. If there are any ungrounded cables near the drive, disconnect them from the power source or replace them with grounded cables.
  Individuals must also be familiar with basic safety rules and how to work safely around high-voltage equipment.
• When working inside the drive, keep all hand tools away from the other components inside the drive to avoid damage. To accomplish this, keep a clear view of the interior of the drive where you are working and only use hand tools near the board you are working with. When removing a board, make sure not to touch any other components in the drive.

WOC supports a large number of GE Speedtronic Mark V Spare parts, including DS200SHCBG1A. Please do not hesitate to contact us if you require additional information or have a question.



FREQUENTLY ASKED QUESTIONS



What is GE Mark V DS200SHCBG1A?

The DS200SHCBG1A is a Shunt Connector Board it has two terminals and a 2-pin connector for connecting the bridge and the motor signal.

How many amps does Shunt Connector Board have?

The Shunt Connector Board has 65 amps

How to Check Price and Availability For DS200SHCBG1A?

Please Contact World of Controls FZE for sales at +1 609 385 1231 or Request a Quote.
