DS200QTBAG1A - RST Termination Board

SPECIFICATIONS

Part Number: DS200QTBAG1A
Manufacturer: General Electric
Series: Mark V
Product Type: RST Terminal Board

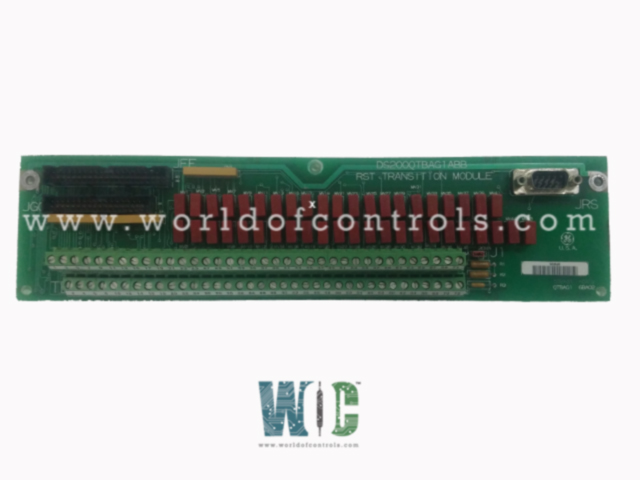

DS200QTBAG1A is an RST Termination Board and is part of the GE Speedtronic Mark V gas turbine control system. The QTBA board contains the IONET and COREBUS, communication connections, and screw terminations for LDTV Excitation, servo inputs, pulse rate inputs, and a WATT / VAR transducer input. QTBA is located in locations L6 R, S, and T - Cores. The QTBA terminal boards land the signal used by the TCQC board in the respective cores.

• WOC has the largest stock of Speedtronic Mark V control spares. We can repair your faulty boards. WORLD OF CONTROLS can also supply unused and rebuilt backed up with a warranty. Our team of experts is available round the clock to support your terminal board needs.

• Our team of experts at WOC is happy to assist you with any of your automation requirements. Please contact our staff by phone or email for pricing and availability on any parts and repairs.



FREQUENTLY ASKED QUESTIONS

What is Mark V DS200QTBAG1A?

It is an RST Termination Board and is part of the GE Speedtronic Mark V gas turbine control system.

What are some of the termination signals on the DS200QTBAG1A?

There are numerous termination signals on the terminal board. HP and LP magnetic pickups for speed, flow driver magnetic pickups, water injection flow meters, servo valve outputs, LVDT excitation, and MW transducer are just a few of the signals on the termination board.

What outputs should not be ground shorted on the terminal board?

On the terminal board, do not ground the LVDT excitation outputs.
