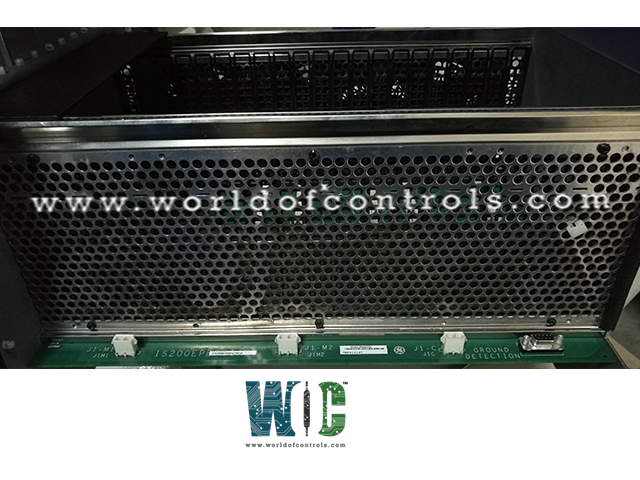

IS200EPBPG1A - Exciter Power Backplane

SPECIFICATIONS

Part No.: IS200EPBPG1A
Manufacturer: General Electric
Product Type: Exciter Power Backplane Board
Series: Mark VI

IS200EPBPG1A is an Exciter Power Backplane component developed by General Electric. This board is for GE EX2100 Excitation Control System. EPBP, which stands for Exciter Power Backplane, is the functional acronym or abbreviation used in GE documentation and manuals. M1, M2, and C Control are all represented on this backplane.

• The backplane allows many attached modules to communicate with one another via a variety of DIN connectors. These modules include the following:
• EPSM Power Supply
  • Exciter Ground Detector Modules (EGDM)
  • EDEX
  • EDCF
• The EPBP backplane board is divided into four pieces. The M1 Control, M2 Control, C Control, and Main Connection Area are all part of the M1 Control. The backplane configuration is depicted in Figure 3-2 of the GEH-6632 GE Publication. The product handbook for the IS200EPBPG1A GEI-100463 has more detailed information.

The most extensive range of GE Speedtronic Mark VI control components can be found at World of Controls. At any time, WOC expert engineers are accessible to assist you with your Mark VI requirements. Please contact WOC right away if you require any additional information.



Frequently Asked Questions



What is IS200EPBPG1A?
IS200EPBPG1A is an Exciter Power Backplane component developed by General Electric.

What does EPBP in IS200EPBPG1A stand for?
EPBP stands for Exciter Power Backplane Board.

How to Obtain IS200EPBPG1A?
World of Controls provides IS200EPBPG1A as well as other turbine control products. Contact WOC.
