IC3600TRLE1A - GE Logic Circuit Board IC 300

SPECIFICATIONS

Part No.: IC3600TRLE1A
Manufacturer: General Electric
Product Type: Logic Circuit Board
Series: Mark I and II

IC3600TRLE1A is a Logic Circuit Board developed by GE. The IC3600TRLE1A is a GE FANUC component designed to work with General Electric's early Speedtronic systems, the Mark I and Mark II. The Speedtronic line was created by GE to help them operate their heavy-duty gas and steam turbines more efficiently, and it was in production from the late 1960s through the 2010s, when the Mark VIe was starting to be phased out of production. These systems provided dependable control for turbines of varying sizes and complexity.

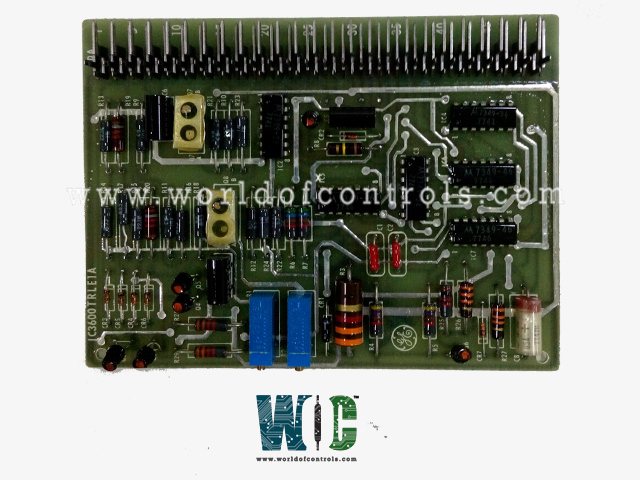

• It is a rectangular card with no front faceplate included. This card features a multi-pin backplane on the opposite long side and is drilled in two corners.
• Two trim potentiometers, eight transistors of two designs, six integrated circuits, and two varistors are all on the board.
• Carbon composite and metal film resistors of varying sizes and resistances are also included on the board. The board's capacitors are made of various materials. The majority of components have a reference designator, yet it's worth noting that some components may have the same reference designator.

The most extensive assortment of Turbine control components can be found at World of Controls. Our GE professionals are standing by to help you with your needs. Please contact WOC right away if you require any additional information.



Frequently Asked Questions



What is IC3600TRLE1A?
IC3600TRLE1A is a Logic Circuit Board developed by GE.

How to Obtain IC3600TRLE1A?
World of Controls provides IC3600TRLE1A as well as other turbine control products. Contact WOC.
