DS3800HCVA1J1H - TURBINE CONTROL TO ANALOG OUTPUT GE

SPECIFICATIONS

Part Number: DS3800HCVA1J1H
Manufacturer: General Electric
Series: Mark IV
Function: Terminal Board

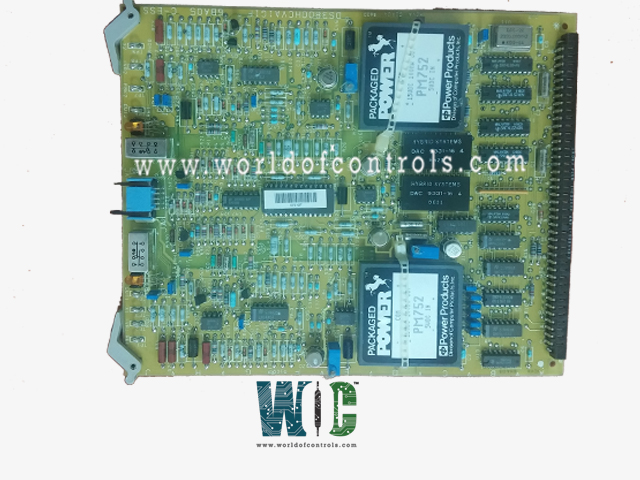

The GE Digital to Analog Output Board DS3800HCVA1J1H has a modular connector for connecting to a drive and retention levers to keep the board in place. The GE Digital to Analog Output Board also has 14 jumpers and two amber indicator LEDs. The board also has three connectors accessible from the front and four trimmer resistors. Trimmer resistors are also known as trim pots. This is due to the fact that they have an adjustment screw and are potentiometers. The screws change the resistance provided by the component.

• After making the necessary adjustments, coat the screw with a few drops of a liquid that quickly hardens and prevents the screw from moving. The liquid is harmless to the components and can be peeled off to allow a servicer to make additional adjustments.

• Never force the board into the rack or the retention levers to move. If the board does not slide easily into the rack, reposition it over the modular connector and gently press down. If the modular connector is properly aligned, it will slide into the matching connector in the rack.

• WOC has the largest stock of Speedtronic Mark IV Spares and we can repair your faulty DS3800HCVA1J1H with a warranty. WORLD OF CONTROLS can also supply UNUSED and REBUILT components backed up with a warranty. Our team of experts is available round the clock to support your critical spare needs, contact us.

FREQUENTLY ASKED QUESTIONS

What is GE Mark IV DS3800HCVA1J1H?

The DS3800HCVA1J1H is a Digital to Analog Output Board.

Does the DS3800HCVA1J1H have a Warranty?

WOC can also supply UNUSED and REBUILT DS3800HCVA1J1H backed up with a warranty of 24 months.

How long does it take for a WOC DS3800HCVA1J1H to Ship?

WOC maintains a large inventory and can fulfill many orders on the same day. Please contact us for additional information.
