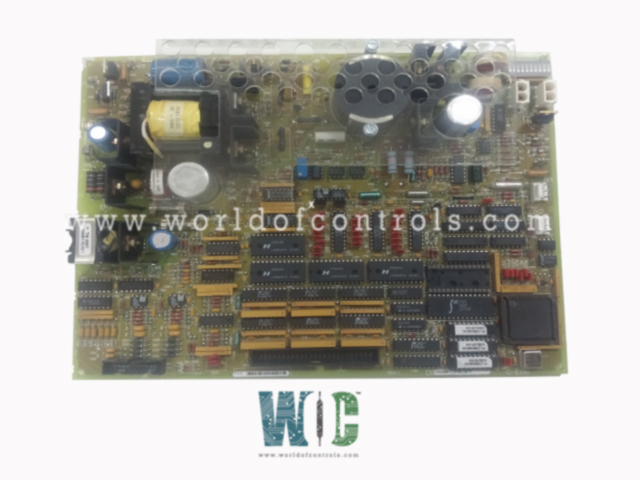

DS200TCEAG1BSF - EMERGENCY OVER SPEED BOARD

SPECIFICATIONS

Part Number: DS200TCEAG1BSF
Manufacturer: General Electric
Series: Mark V
Function: Processor Card

General Electric Speedtronic Mark V DS200TCEAG1BSF Emergency Overspeed Board features P core of the Mark V panel houses one microprocessor and numerous programmable read-only memory (PROM) modules.

• Three fuses, 30 jumpers, and a pair of bayonet connections are also included. The board keeps an eye on the drive for Overspeed and flame detection trip conditions and shuts it down as needed.
• The bayonet connectors are used to link the board to the rest of the drive's components and boards. Before connecting the male bayonet connectors on the end of the wires to the female bayonet connectors on the board.
• To remove a bayonet connector, maintain one hand on the connector and the other on the board to prevent it from bending or sliding. To remove a bayonet connector, maintain one hand on the connector and the other on the board to prevent it from bending or sliding.
• Remove the bayonet connection from the board's female connector and set aside the cable until you're ready to connect it to the replacement board. Align the connector and press it into the connector on the board to connect a bayonet connector. It clicks into place once it is fully placed. You can use a gentle tug on the cable to test the connection.

WOC has the largest stock of Speedtronic Mark V control spares and we can repair your faulty DS200TCEAG1BSF with a warranty. WORLD OF CONTROLS can also supply UNUSED and REBUILT components backed up with a warranty. Our team of experts are available round the clock to support your DS200TCEAG1BSF needs, contact us.



FREQUENTLY ASKED QUESTIONS



What Kind of Microprocessor is Used in the DS200TCEAG1BSF?

The Microprocessor of the DS200TCEAG1BSF is an 80196

What is the purpose of DS200TCEAG1BSF?

There are a series of berg jumpers that program the board to the place in the < P > core where DS200TCEAG1BSF is located.

What is the function of DS200TCEAG1BSF, aside from overspeed?

DS200TCEAG1BSF is in charge of processing the overspeed signals, as well as the flame detection trip signals.

How long does it take for a WOC DS200TCEAG1BSF to Ship?

WOC maintains a large inventory and can fulfill many orders the same day. Please contact us for additional information.
