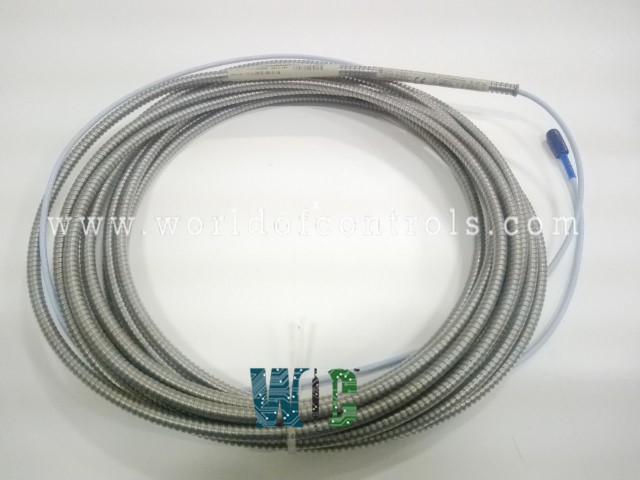

330130-080-01-05 - Armoured Extension Cable

SPECIFICATIONS

Part Number: 330130-080-01-05
Manufacturer: Bently Nevada
Product Type: Armoured Extension Cable
Availability: In Stock
Country of Origin: United States (USA)
Product Family: 330850

330130-080-01-05 is an Armoured Extension Cable manufactured by Bently Nevada and used in transducer systems. For use with the 3300 XL Transducer system, utilize the Bently Nevada 3300 XL Extension Cables. The electrical lengths of the three system components must be constant. The electrical length of the Proximitor must match the electrical lengths of the proximity probe and the extension cable.

For the 3300 XL Transducer system, extension cables lengths range from 3 to 8.5 meters Cable types include:

• Regular cable
• Cable armor
• The cable FluidLoc



Configurations

• Cable length: 8.0 metres (26.2 feet)
• Connector Protector and Cable Option: Armored cable
• Agency Approval Option: CSA, ATEX, IECEx Approvals

330130-080-01-05 Characteristics

• Standard Cable: -52°C to +177°C (-62°F to +350 °F)
• Weight: 0.045 Kg
• Operating and Storage Temperature: -35°C to +200°C (-31°F to +392°F)

Field Wiring

16 to 24 AWG for 0.2 to 1.5 mm2. Recommend using tinned field wire and 3-conductor shielded triad cable. The distance between the 3300 XL Proximitor Sensor and the monitor can be no longer than 305 meters (1,000 feet). When employing longer field wiring lengths, see the frequency response graphs in through Figure 13 (pages 27 and 28) for signal rolloff at high frequencies.

330130-080-01-05 Features

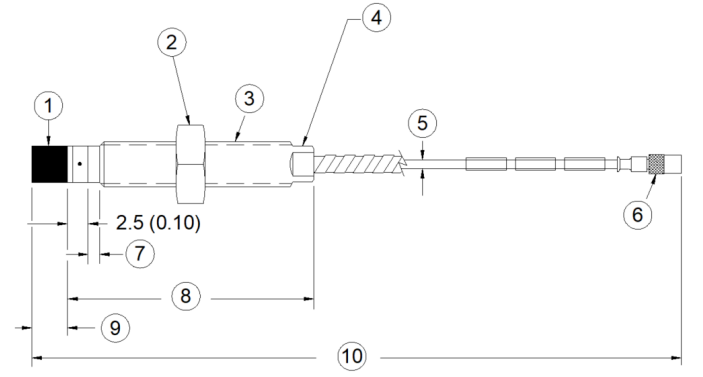

1. Probe tip, 8.0 mm (0.31 in) diameter
2. 9/16 in for 3/8-24 threads, M17 for M10 threads (see Note 2)
3. Case thread
4. 5/16 in wrench flats for 3/8-24 threads; 8mm wrench flats for M10 threads.
5. 75Ω cable, 3.68 mm (0.145 in) maximum outside diameter, 3.94 mm (0.155 in) maximum outside diameter for FluidLoc cable, 7.67 mm (0.302 in) outside diameter of armor, 9.5 mm (0.38 in) maximum diameter of armor ferrule
6. Miniature male coaxial connector, 7.24 mm (0.285 in) maximum outside diameter “D”
7. Unthreaded length “A”
8. Case length “B”
9. 6.0 mm (0.235 in) maximum
10. Total length “C”, +30%, -0%3
