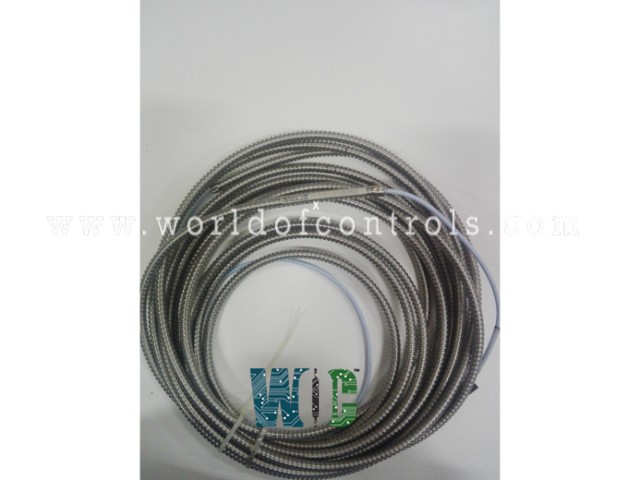

330130-080-01-00 - 3300 XL Standard Extension Cable

SPECIFICATIONS

Part Number: 330130-080-01-00
Manufacturer: Bently Nevada
Product Type: Standard Extension Cable
Availability: In Stock
Country of Origin: United States (USA)
Total Length: 8.0 metres
Product Family: 3300 XL, 3300XL, 3300-XL

330130-080-01-00 is a 3300 XL Standard Extension Cable designed and manufactured by Bently Nevada and used in Proximity Transducer System. Three components make up the Bently Nevada 3300 XL 8mm Proximity Transducer System: a 3300 XL 8mm probe, a 3300 XL extension cable, and a 3300 XL Proximity Sensor. Both static (position) and dynamic (vibration) values can be measured by the system, which outputs a voltage that is directly proportional to the distance between the probe tip and the detected conductive surface.

330130-080-01-00 Features

• Keyphasor reference and speed measurements, as well as vibration and position measurements on fluid-film bearing machines, are the system's main applications.
• The standard API 670 Standard (4th Edition) for mechanical configuration, linear range, precision, and temperature stability is also completely met by the 3300 XL 8 mm 5-meter system.
• Each element of the 3300 XL 8 mm transducer system is retro compatible and interchangeable with non-XL elements of the 3300 series 5 mm and 8 mm transducer systems.
• The 3300 5 mm probe is compatible with this system and can be used in applications where an 8 mm probe would be too large for the mounting space.

Characteristics

1. Perfect for Fluid-Film Bearing Machines, Speed Measurements, and Compression Systems
2. Applications for Extended Temperature Range
3. Complete Unit and Cabling Interchangeability
4. Compatibility with Transducer System Components from Other Non-3300 XL Series

Configuration

• Cable Length Option: 8.0 metres (26.2 feet)
• Connector Protector and Cable Option: Armored Cable
• Agency Approval Option: Not required

Extension Cable Material

• Standard cable: 75 ohm triaxial, fluoroethylene propylene (FEP) insulated.
• Extended Temperature Range cable: 75 ohm triaxial, perfluoroalkoxy (PFA) insulated.
• Minimum Cable Bend Radius: 25.4 mm

World of Controls has the most comprehensive catalog of Bently Nevada Replacement parts. Our professionals are standing by to help you with your needs. If you require any additional information, please contact WOC.



FREQUENTLY ASKED QUESTIONS



What is Bently Nevada 330130-080-01-00?
330130-080-01-00 is a 3300 XL Standard Extension Cable used in Proximity Transducer System.

Are the Products Genuine OEM Units?
These items have been certified by WOC Quality Control to be genuine OEM Units obtained through OEM or independent third-party channels.

How much is the cable length?
The cable is 8 meters in length

Is the component compatible with the Extended Temperature Range?
Yes, the component is compatible.
